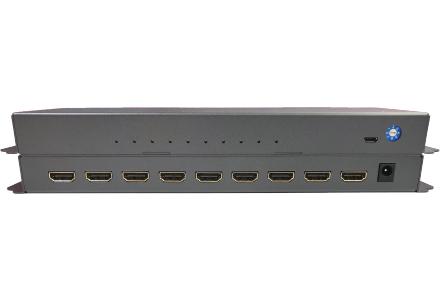

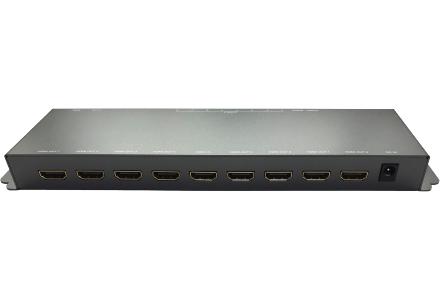

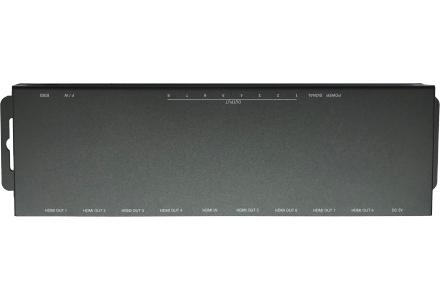

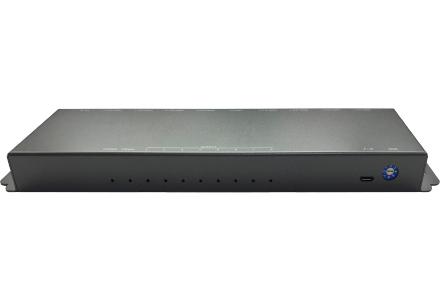

4K HDMI 2.0 1x8 Splitter

S13-H01H08

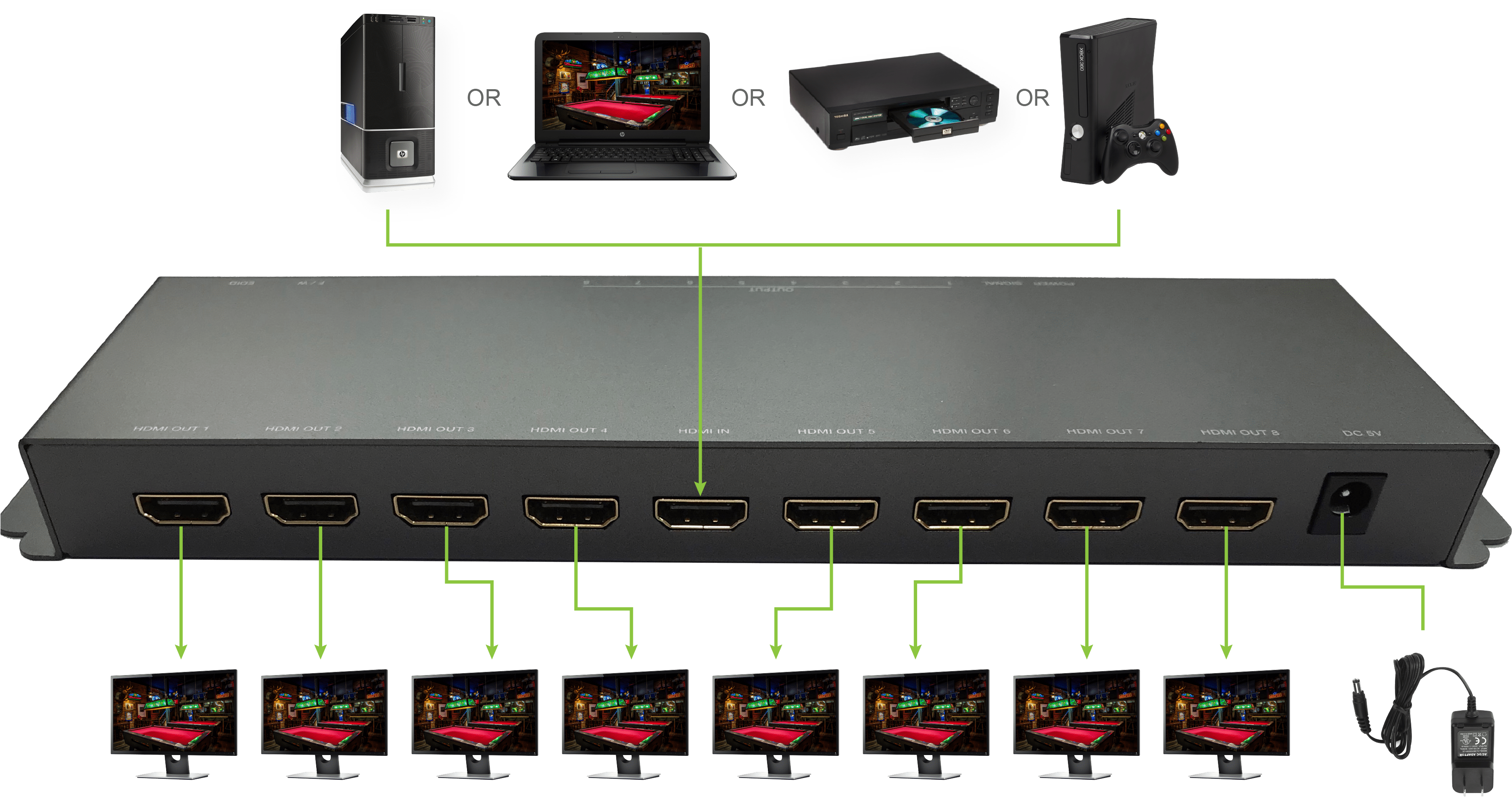

The S13-H01H08 is HDMI 2.0 splitter to distribute one video image and audio to 8 displays respectively. Its adjustable EDID management feature provides the most effective and advanced HDMI splitter solution to avoid compatibility issue with various display models in the market.

The S13-H01H08 is HDMI 2.0 splitter to distribute one video image and audio 8 displays. Its adjustable EDID management feature provides the most effective and advanced HDMI splitter solution to avoid compatibility issue with various display models in the market.

It’s capable of upgrading the firmware via USB port for specific request in technical support. With the upmost HDR/4K@60Hz 4:4:4 8 bits and high definition audio support, Partilink HDMI 2.0 Splitter is suitable for high quality HDMI broadcasting, digital signage and education applications.

FEATURES

• Supports 4K @60Hz 4:4:4 8 bits
• HDCP 1.4 / 2.2
• Supports HDR, which is 4K@60Hz 4:2:0 10 bits
• Wide frequency range: 25MHz ~ 600MHz
• Video bandwidth 18 Gbps
• Supports resolution downscaling from 4K to 1080p
• EDID management including default EDID and EDID learning from display
• Supports xvYCC, x.v. Color & Deep Color
• Firmware upgradable via micro USB
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio


MODEL NO.

S13-H01H08

INPUT

HDMI 2.0 x 1, Type-A female connector

OUTPUT

HDMI 2.0 x 8, Type-A female connector

BANDWIDTH

18 Gbps

HDMI VERSION

HDMI 1.4 and 2.0 compliant

HDCP VERSION

HDCP 1.4 / 2.2

HDMI RESOLUTION

4K @60Hz (4:4:4 8 bits)

HDR 4K@60Hz (4:2:0 10 bits)

AUDIO FORMAT

LPCM/DTS/Dolby True HD/DTS-HD master audio

FIRMWARE UPDATE

Micro USB port

ESD PROTECTION

Human body model –± 15KV (air-gap discharge), ± 8KV (contact discharge)

POWER SUPPLY

DC5V 2A

POWER CONSUMPTION

Maximum 10 Watts

ENVIRONMENT

Operating Temperature: 0℃ ~ 40℃

Operating Humidity: -20% ~ 60%

Operating Humidity: 20% ~ 90% RH

DIMENSION

232 x 68 x 23 mm (L x W x H)

WEIGHT

435 G
