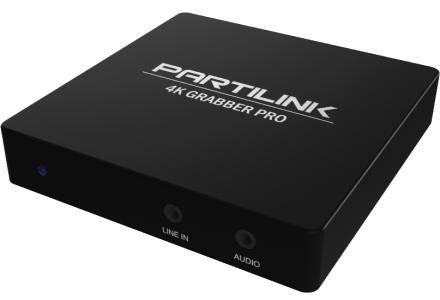

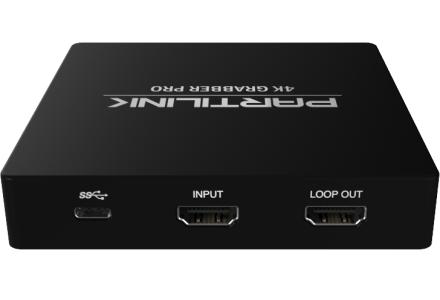

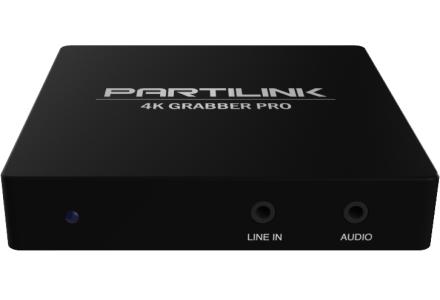

HDMI2.0 to 4K@30Hz USB-C Capture Pro
-
GRA-HU2HU3
The Professional 4K Capture Tool for Gamer & YouTuber
The GRA-HU2HU3, HDMI 2.0 to 4K@30Hz USB-C Capture Pro, is designed to capture 4K@60Hz HDMI video then uplink 4K@30Hz data to the connected computer via USB-C. It allows the user to capture video from HDMI sources such as PS4, XBOX, Switch, camera … etc. for filing, re-editing and streaming on connected PC, laptop and tablet.
With this tool, streaming media is made easy to capture every sound and movement beautifully. This is a professional level capture tool for gamer or YouTuber to realize the captured video professionally in front of the audiences.
The GRA-HU2HU3, HDMI 2.0 to 4K@30Hz USB-C Capture Pro, is designed to capture 4K@60Hz HDMI video then uplink 4K@30Hz data to the connected computer via USB-C. It allows the user to capture video from HDMI sources such as PS4, XBOX, Switch, camera … etc. for filing, re-editing and streaming on connected PC, laptop and tablet.
With this tool, streaming media is made easy to capture every sound and movement beautifully. This is a professional level capture tool for gamer or YouTuber to realize the captured video professionally in front of the audiences.
Features:
- HDMI 2.0 input supports 4K@60Hz and HDR
- HDMI 2.0 loop-out port supports 4K@60Hz and HDR
- Video captures resolution up to 3840x2160@30Hz or 1920x1080@120Hz
- Supports deep color (36-bit color)
- Supports USB 3.1 Type-C Gen1
- Supports UVC 1.0
- Supports audio LINE-IN
- Supports AUDIO headset (TRRS only)
- Supports USB port power supply, no external power supply required
- Compatible with third-party applications, such as QuickTime, OBS, XSplit, vMix, Zoom, Skype, Gamecaster, Broadcaster...etc.
Application
- Gaming: capturing to edit the file for storage on the connected PC, or live steaming to display in various media platform such as YouTube, FB, Instagram …etc.
- Business: video conference, live streaming to promote and demonstrate product
- Education: remote teaching and training
| MODEL NO. | GRA-HU2HU3 | |||
| INPUT INTERFACE | HDMI 2.0 Type-A x 1 | |||
| OUTPUT INTERFACE |
USB Type-C (SuperSpeed) UVC x 1, HDMI 2.0 Type-A x 1 |
|||
| INPUT/ OUTPUT (LOOPOUT) RESOLUTION |
3840x2160p 60/50/30/25/24Hz 2560x1440p 144/60Hz 1920x1080p 240/ 144/120/60/50/30/25/24Hz 1920x1080i 60/50Hz 1280x720p 60/50Hz 720x576p 50Hz 720x480p 60Hz 720(1440)x576i 50Hz 720(1440)x480i 60Hz 640x480p 60Hz |
|||
| CAPTURE RESOLUTION | USB3.0 SuperSpeed | NV12 | YUY2 | |
|
3840x2160p 30 Hz 2560x1440p 60 Hz 1920x1080p 120/60/50/30/25 Hz 1280x720p 60 Hz 720x480p 60 Hz 720x576p 50 Hz 640x480p 60 Hz |
2560x1440p 50 Hz 1920x1080p 60/50/30/25 Hz 1280x720p 60 Hz 720x480p 60 Hz 720x576p 50 Hz 640x480p 60 Hz |
|||
|
USB2.0 Hi-Speed |
1280x720p 30 Hz 720x576p 50 Hz 720x480p 60 Hz 640x480p 60 Hz |
1280x720p 30 Hz 720x576p 50 Hz 720x480p 60 Hz 640x480p 60 Hz |
||
| COLOR SAMPLING | RGB, YUV (YCbCr444, YCbCr422, YCbCr420) | |||
| VIDEO FORMAT | NV12 , YUY2 | |||
| UAC AUDIO OUTPUT | Stereo / 16-bit PCM encoded audio at 48KHz sampling rates | |||
| AUDIO INTERFACE | 3.5mm Headset (TRRS only) | |||
| LINE-IN: 3.5 mm input | ||||
|
SYSTEM REQUIREMENTS |
CPU | i5 Dual Core 2.8GHz or higher | ||
| RAM | 4GB or higher | |||
| OS |
Windows 8 and above MacOS 10.13 and above |
|||
| ENVIRONMENT | Operating Temperature | 0℃ ~ 45℃ | ||
| Operating Humidity | 20% ~ 90% | |||
| DIMENSION | 106 x 106.4 x 21m (W x L x H including rubber pad) | |||
| WEIGHT | 235 G | |||
| ACCESSORIES | USB-C to USB-A Cable x 1, USB-C to USB-C Cable x 1, Power Adapter x 1 | |||
