OVERVIEW

Partilink M33-H04H02 is a HDMI 2.0 and USB 2.0 KVM Switch & Multiviewer with 4-port HDMI/ USB PC inputs and dual HDMI outputs to do multiview and extension display, switch and control simultaneously. It’s designed to enhance the productivity and effectiveness from a single work station for straight forward operation in monitoring, switch and control.

With the built-in KM feature to command/ control and real time access to 4K60 multiview 4 PC/ servers, users can instantly take control of the target computer by simply moving the mouse among the 4 windows from the primary multiview display and extend the target computer to the secondary display for further operation.


FEATURES

•         Supports 4-port HDMI 2.0 and USB 2.0 PC inputs and 2-port HDMI 2.0 outputs

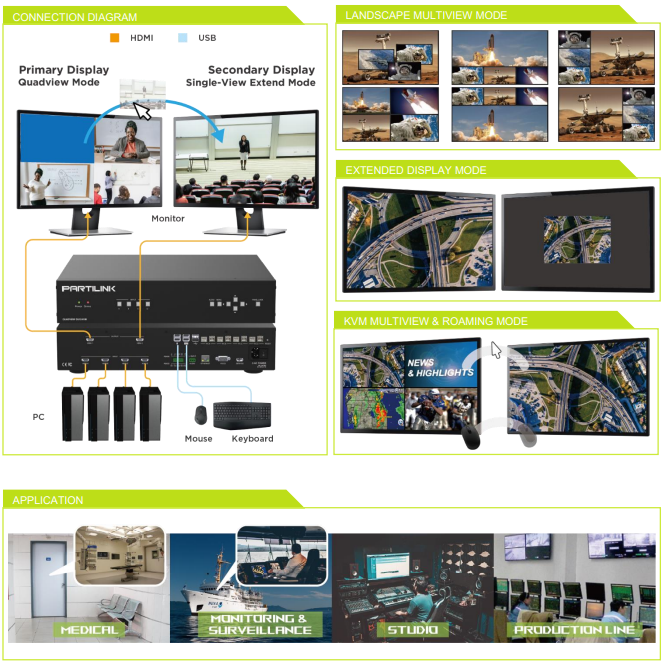

•         Supports dual displays including primary multiview mode display and

            secondary single PC/server/ window extension mode display

•         Supports input resolutions and output resolutions up to

            4K@60Hz 4:4:4 color sampling for each port

•         Scaling up to 4K60Hz, 4:4:4 color sampling, deep color and able to downscale

•         Supports HDCP 1.4/ 2.2 for input signals and output connection

•         Supports cascading up to 5 units to create a max. of 16 host devices controlled

            by 1 set of keyboard and mouse console

•         Supports multi-view pre-defined and user-defined layout on primary display

•         HDMI digital audio and HDMI audio de-embedded to analog stereo audio for output

•         Controls by OSD, web UI, RS232/RS422/RS485, front panel button and touch screen

•         Firmware upgradable via USB port

•         Built-in power supply

•         Supports most of the O.S. including Windows, Linux, Mac, Chrome ..etc.
