4K60 HDMI & USB 2.0 Extender over IP with PoE & SFP

E23 Series

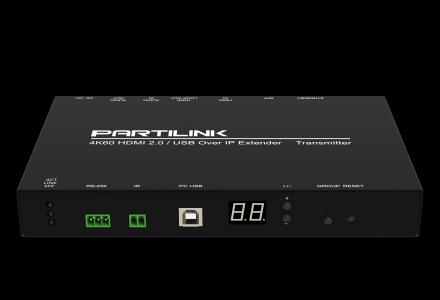

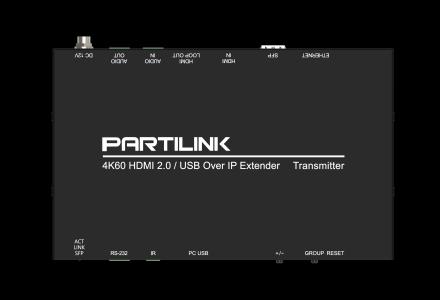

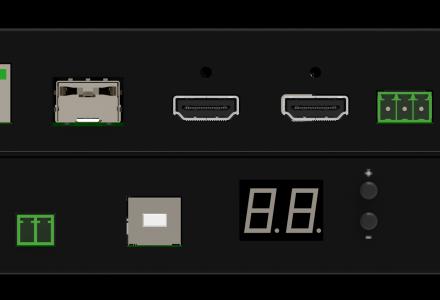

Transmitter  E23T  / E23T-P  / E23T-F  / E23T-PF

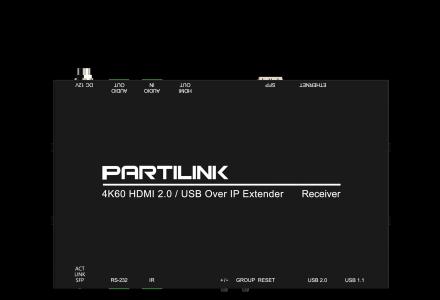

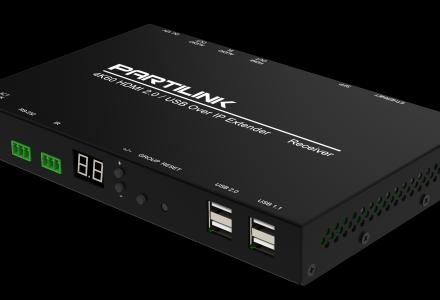

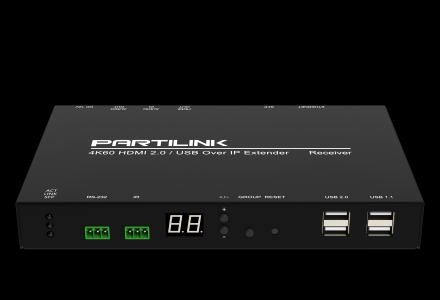

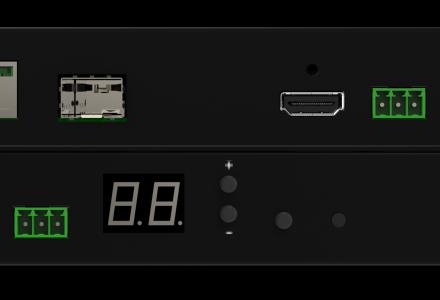

Receiver       E23R  / E23R-P / E23R-F  / E23R-PF
                       basic       / PoE                / SFP                / PoE + SFP model

4K60 HDMI + USB2.0 AV & KVM extender over IP for point to point, point to multi-point, multi- point to multi-point and video wall broadcast including USB/RS-232 and IR control extension.

Easy installation with networking 1 Giga Ethernet switch and CAT-5e cable for building up the extension or broadcast system.

Optimized choice to apply in Matrix, Video Wall and KVM Remote Control integration solutions. Its encoder/ decoder technology provides the benefit of system scope scalability and the smart modular design is flexible to achieve alternative features.

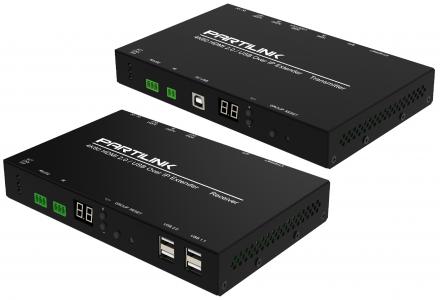

The Partilink 4K60 HDMI + USB2.0 AV & KVM Extender over IP is a series of products composed of a transmitter and a receiver to extend HDMI, USB, RS232, and IR signals over IP via a CATx cable and Gigabit Ethernet switch or a fiber optic cable. It can be applied for point to point unicast, point to multi-point or multi-point to multi-point multi-cast and video wall.



It’s an optimized choice to apply in Matrix, Video Wall and KVM Remote Control integration solutions. Its encoder/ decoder technology provides the benefit of system scope scalability and the smart modular design is flexible to achieve alternative features including PoE or extension over SFP.



Beside extender, we also provide a controller to go with the application for matrix and video wall system control as total solution. The Partilink E23C and E23C-P are central controller for Partilink HDMI 2.0 over IP transmitters and receivers controlled via web UI.

Features:

• HDMI 2.0/USB 2.0/1.1 over IP extension
• Supports HDMI resolution up to 4K/60Hz
• Supports HDMI loop-through on TX
• Supports HDR10/HDR10+/Dolby Vision
• RS-232 bi-directional extension
• HDCP 1.4/2.2/2.3 compliant and Blu-Ray ready
• Two-way IR extension
• Digital LED indicators with up and down button for group selection
• Automatic EDID configuration
• KM over IP roaming
• Seamless KM switching on TX and RX
• Ultra latency under 0.5 frame
• Networking environment under 1 Giga Ethernet switch and CAT-5/ 6/ 7 cable
• Point to point extension, unitcast, multicast and video wall system
• Point to point extension via CAT-5/6/7 cable withtout Ethernet switch up to 100M
• Ethernet web UI management
• RS-232 serial control command management

Applications:

• Unicast, point to point extension at office as hub or docking station
• Multicast, point to multipoints or multpoints to multipoints extension in surveillance cernter,                 broadcast in exhibition, concert, airport, bus station, shopping mall, bank and hospital
• Video wall installation in exhibition, concert, airport, bus station or shopping mall
• KVM remote control and operation in factory or control room





 MODEL

TRANSMITTER

E23T / E23T-P / E23T-F / E23T-PF

RECEIVER

E23R / E23R-P / E23R-F / E23R-PF

 VIDEO INPUT

 HDMI Type-A x 1

 None

 VIDEO OUTPUT

 HDMI Type-A loop out

 HDMI Type-A

 AUDIO INPUT

 1 x L/R Audio in

 3-Pin Phoenix (Line-in)

 1 x L/R Audio in

 3-Pin Phoenix (Line-In)

 AUDIO OUTPUT

 1 x L/R Audio Out

 3-Pin Phoenix (line-out)

 1 x L/R Audio Out

 3-Pin Phoenix (line-out)

 USB INTERFACE

 1 x USB Type B (USB 2.0)

 2 x USB Type A (USB 2.0)

 2 x USB Type A (USB 1.1)

 Note:

  • KVM can be applied with     any USB port
  • USB 2.0 for camera return works under unicast mode only

 RS-232 SERIAL

 1x 3-Pin Phoenix

 (TXD, GND, RXD)

 1 x 3-Pin Phoenix

 (TXD, GND, RXD)

 IR INTERFACE

 1x 2-Pin Pphoenix for IR emitter to control source device

 (P - VCC Power, S - Signal)

 1 x 3-Pin Phoenix for IR receiver to control source device

(P - VCC Power, G – GND, S – Signal)

 LINK INTERFACE

 1 x RR45 or SFP (PoE supported)

 1 x RJ45 or SFP (PoE supported)

 LED INDICATOR

 1 x Active Power (Blue) x 1

 1 x RJ45 Link (Green) x 1

 1 x SFP Link (Green)

 Channel LED (Display current channel number)

 1 x Active Power (Blue) x 1

 1 x RJ45 Link (Green) x 1

 1 x SFP Link (Green)

 Channel LED ( Display current channel number)

 USER CONTROL

 Push button (from left to right)

 Video Channel (CH+/ CH-_

 Reset Channel: Set/ Reset

 Video/ Image selection

 Push button (from left to right)

 Video Channel (CH+/ CH-_

 Reset Channel: Set/ Reset

 Video/ Image selection

 HDMI

 INPUT RESOLUTION

 3840x2160 60/30/24, 1080p 60/50, 1080p 30/25, 1080i 60/50

 720p 60/50, 480i 60/50, 480p 60/50

 HDMI

 OUTPUT RESOLUTION

 3840x2160 60/30/24, 1080p 60/50, 1080i 30/25, 720p 60/50, 480i 60/50

 480p 60/50

 HDMI

 LOOPOUT RESOLUTION

 3840x2160 60/30/24, 1080p 60/50/30/25, 720p 60/50

 480i 60/50, 480p 60/50

 AUDIO FORMAT

 LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD, DTS   HD Master Audio, Dolby ATMOS

 IP PROTOCOL

 TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4

 LAN PORT

 RJ45 connector for Giga Ethernet

 POWER INPUT

 2.0mm power jack for DC12V/2A input

 POE POWER

 802.3 af

 OPERATING TEMPERATURE

 0~55°C

 STORAGE TEMPERATURE

 -20~85°C

 OPERATING HUMIDITY

 Up to 95% RH

 POWER SUPPLY

 Power adapter AC in 100~240V (50~60Hz)

 DIMENSION

 205.5 x 127.6 x 28 mm ( L x W x H)

 WEIGHT

 728 g

 744 g
