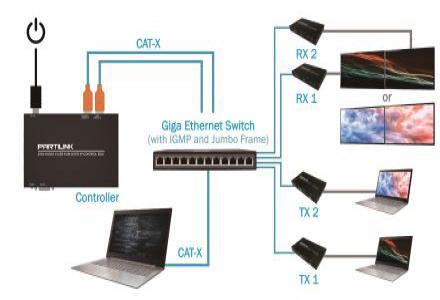

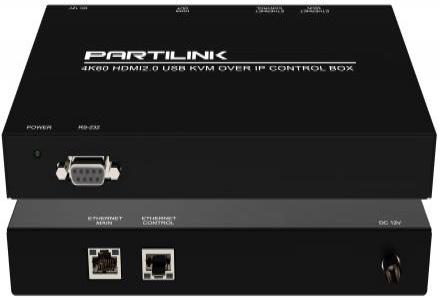

The Partilink E23C and E23C-P are 4K60 HDMI AV over IP Control Central Controller to manage and go with Partilink E23 series HDMI & USB over IP transmitters and receivers systematically for the matrix and video wall system application. It can configure and control the transmitters and receivers on the web UI via click on the mouse easily. It's easy to install with 1G Ethernet switch and CAT5/ 6 cable for building up the extension & broadcast system.

There are two models for option; one comes with external power supply, the other is embedded with PoE feature to save the space for external power supply and wire in the application site with neat environment.

FEATURES

• configures and controls video extension system in multicast, matrix and video wall application modes
• controls HDMI KVM over IP transmitters and receivers centrally
• provides Web UI for managing the video wall system
• log in/out, user name and password security management
• supports video wall up to 64 screens which is built as 8x8 video wall array (video wall scope bigger than 8x8 required to customize firmware)
• auto scan to show the IP of the connected transmitter and receivers of the system.
• stores up to 15 various matrix/ video wall display patterns as projects
• supports multiple extender groups setting
• preview the image per transmitter or receiver
• bezel correction for video wall application
• English and Chinese operation for option

APPLICATION

• Multicast, point to multi points or multi points to multi points extension
• Video wall installation
• Video system control center
• Application venues: broadcast system in bus/ train/ subway station or airport, conference room, campus, exhibition center; hospitality system at hotels, department stores, shopping mall, food courts and restaurant
