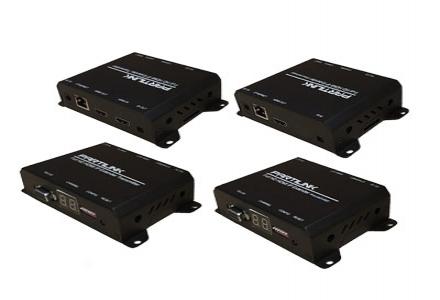

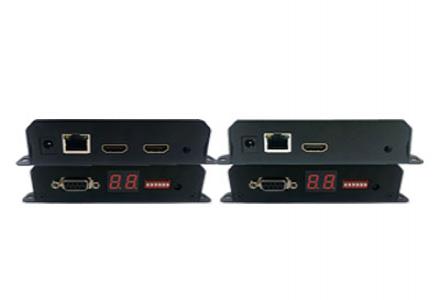

1080p HDMI Extender over IP with PoE: P2K-HL3E1-P　　　　　　　　　　 (P2K-HRSL3E1P+ P2K-LHRS1E3P)

HDMI over IP Extender for point to point, point to multi-point, multi- point to multi-point and screen wall broadcast including RS-232 and IR control extension.

Easy installation with networking 10/100 BASE-T switch hub and CAT-5 cable for building up the extension or broadcast system.

Overview
Specifications
Diagram
Download

HDMI over IP Extender for point to point, point to multi-point,multi- point to multi-point and screen wall broadcast including RS-232 and IR control extension.

Easy installation with networking 10/100 BASE-T switch hub and CAT-5 cable for building up the extension or broadcast system.

Features:

‧ RS-232 bi-directional extension

‧ 4 bits switch for 16 stream channel selection

‧ 2 bits switch for 8 RS-232 baud rate setting

‧ HDCP compliant and Blu-Ray ready

‧ Support IR extension

‧ Automatic EDID configuration

‧ Networking environment under 10/100 BASE-T switch hub and CAT-5 cable

‧ Point to point extension, unicast, multicast and screen wall system

‧ Point to point extension via CATx without Ethernet switch up to 100M

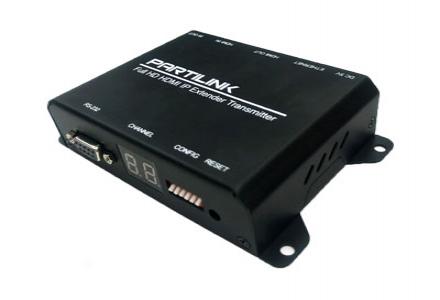

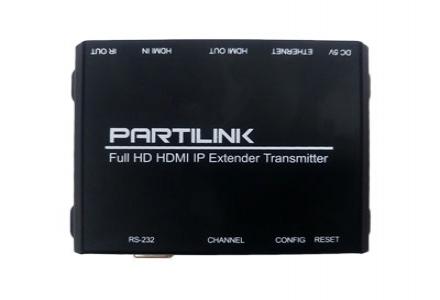

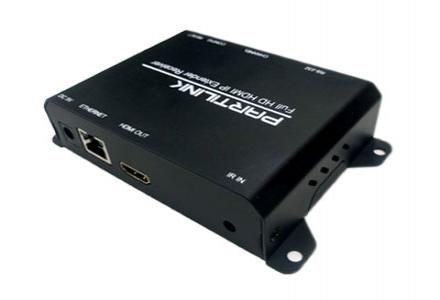

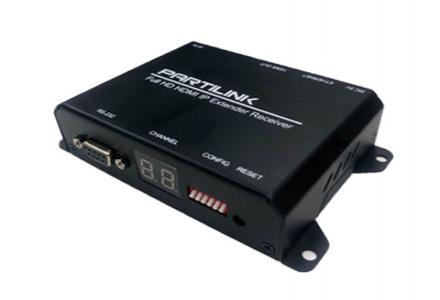

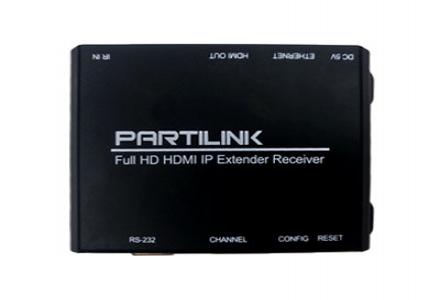

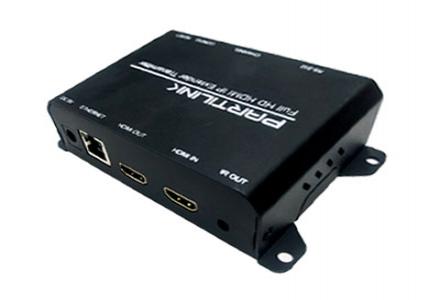

P2K-HRSL3E1-P 1080p HDMI Extender over IP with PoE	P2K-HRSL3E1-P Transmitter	P2K-LHRS1E3-P Receiver
VIDEO INPUT	HDMI Type-A female connector	None
VIDEO OUTPUT	HDMI Type-A female connector for loop through	HDMI Type-A female connector
IR	3.5mm phone jack for IR emitter to control video source device	3.5mm phone jack for IR receiver cable to receive remote signal
COMPRESSION	H.264 compression video format Full HD Encoder/ Decoder MP3 compression audio format stereo 192Kbps Encoder/ Decoder Media stream up to 18Mbps
HDMI INPUT RESOLUTION	1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,480i 60/50, 480p 60/50
HDMI OUTPUT RESOLUTION	1080p 30/25, 1080i 60/50, 720p 60/50, 480i 60/50,480p 60/50
AUDIO FORMAT	Stereo 192Kbps
IP PROTOCOL	TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
LAN PORT	RJ45 connector for 10/100 BASE-T CAT-5 extension
SERIAL	DB-9 male connector for RS-232
POWER INPUT	2.0mm power jack for DC5V/2A input
OPERATING TEMPERATURE	0~55℃
OPERATING HUMIDITY	5%~90% RH
POWER SUPPLY	Power adapter AC in 100~240V (50~60Hz)
ESD	ESD protection air gap discharge ±8KV, contact discharged ±4KV
DIMENSION	130 x 25 x 60 mm
WEIGHT	200g
