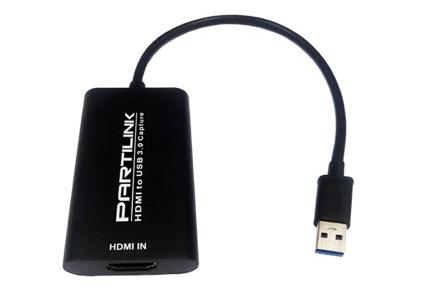

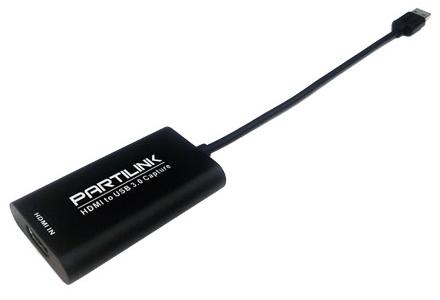

HDMI to USB 3.0 Video Grabber Dongle
-
HG-11
HG-11 is a HDMI to USB 3.0 video grabber (external USB capture dongle), designed to capture 1080p video and audio signal from HDMI source, and transfer video and audio between grabber and PC/NB through USB cable.
HG-11 is a HDMI to USB 3.0 video grabber (external USB capture dongle), designed to capture 1080p video and audio signal from HDMI source, and transfer video and audio between grabber and PC/NB through USB cable.
Features
‧ Capture video and audio from HDMI sources such as video display or camera sources
‧ Support USB 3.0 or USB 2.0 data uplink
‧ Support true 24-bit color and provides consistent frame rate performance regardless of video
content
‧ Capture resolutions up to 1080p at 60 frames per second
‧ Interfaces with multiple third party applications compatible; with DirectShow on Windows,
Video4Linux on Linux, QuickTime on Mac OS X
‧ Sources power from USB port, no external power supply required
| MODEL NO. | HG-11 |
| DESCRIPTION | HDMI to USB 3.0 Video Grabber |
| INPUT INTERFACE |
1 x HDMI Type A HDMI 1.4b standard up to 1080p at 60 frames per second |
| OUTPUT INTERFACE |
1 x USB Type A (USB 3.0,USB 2.0) UVC video and audio |
| VIDEO SAMPLING | 4:4:4 format |
| RESOLUTION | 480p, 720p, 1080p |
| OUTPUT COLOR SPACE | YUV2, RGB |
| HDMI AUDIO | 16-bit PCM encoded audio at 32KHz, 44.1KHz and 48KHz sampling rates |
| OS SUPPORT | Windows 7,8,10, Mac OS X (10.8 and above), Linux |
| ENVIRONMENT | Operating Temperature 0~45℃ |
| DIMENSION | 38 x 200 x 13.2 mm (W x L x H, including the pigtail) |
■ Data sheet
HG-11 data sheet 160921 (dongle)
■ User Manual
User manual HG-11 170731.pdf
■ Driver
HG-11 driver (0.0.6.2) for Windows7
