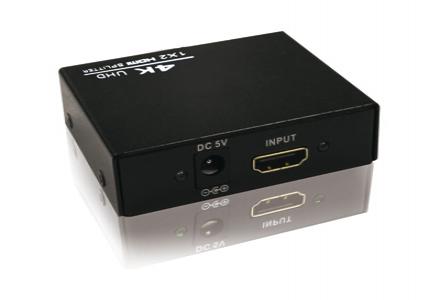

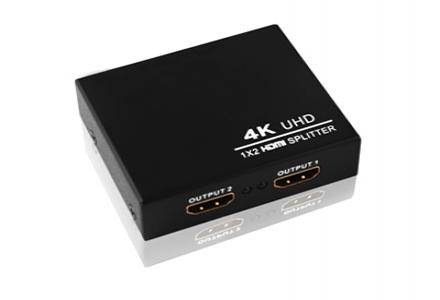

4K HDMI 1x2 Splitter
-
P4K-HH1S2The Partilink 2-port HDMI splitter supports Ultra HD 4K ensuring astonishing picture quality,four times the resolution of high-definition 1080p,while sharing a 4K HDMI video source between two HDMI displays.

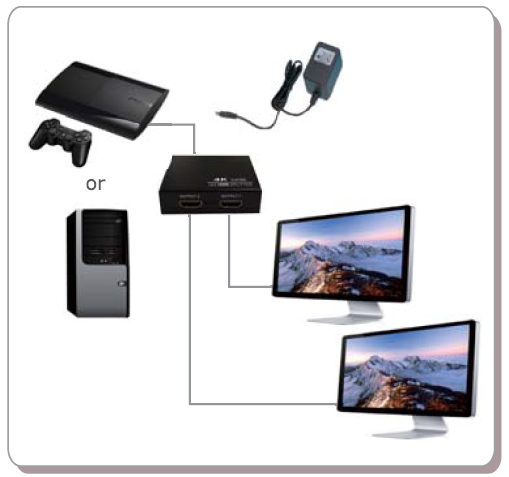

The Partilink 2-port HDMI splitter supports Ultra HD 4K ensuring astonishing picture quality, four times the resolution of high-definition 1080p, while sharing a 4K HDMI video source between two HDMI displays.
Features:
‧ Support Ultra HD video resolution up to 4K @30Hz display
‧ Support HDCP 1.4
‧ EDID parsing
‧ Cascade up to 16 layers
‧ Support display HDMI 2.0 YCbCr 420 format
‧ Support 7.1 CH audio
‧ LED indicator for power and active status
| MODEL NO. | P4K-HH1S2 |
| DESCRIPTION | 4K HDMI 1x2 Splitter |

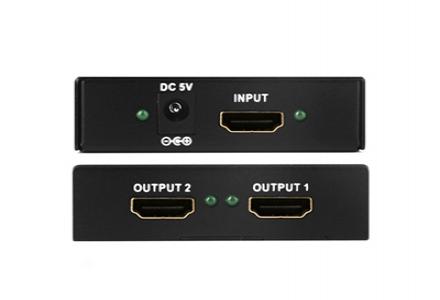

| VIDEO INPUT | HDMI X 1 |

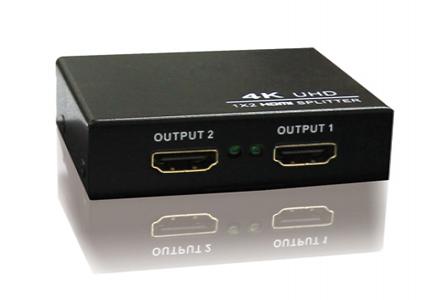

| VIDEO OUTPUT | HDMI x 2 |
| HDMI VERSION | HDMI 1.4 and 2.0 compliant |
| HDCP VERSION | HDCP 1.4 |
| RESOLUTION |
HDMI 4K x 2K @60p (4:2:0)
HDMI 4K x 2K @30p/1080p/1080i /720p/576p /576i/480p /480i
HDMI 1080p 3D @60p
|
| COLOR DEPTH | 24bit/30bit/36bit |
| AUDIO FORMAT | LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio |
| DATA RATE | Data transfer throughput 3.0Gbps |
| OPERATING TEMPERATURE | 0~55℃ |
| OPERATING HUMIDITY | 5%~90% RH |
| POWER SUPPLY | Power Jack 2.0mm, DC5V/1A input |
| ESD | ESD protection air gap discharge ±8KV, contact discharged ±4KV |
