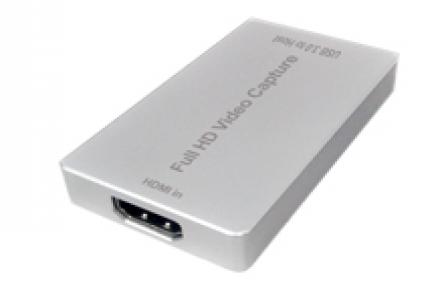

HDMI to USB 3.0 Capture Box
-
HG-11BHG-11B is a HDMI to USB 3.0 video grabber (external USB capture), designed to capture 1080p video and audio signal from HDMI source, and transfer video and audio between grabber and PC/NB through USB cable.
HG-11B is a HDMI to USB 3.0 video grabber (external USB capture), designed to capture 1080p video and audio signal from HDMI source, and transfer video and audio between grabber and PC/NB through USB cable.
Features:
‧ Capture video and audio from HDMI sources such as video display or camera sources
‧ Support USB 3.0 or USB 2.0 data uplink
‧ Support true 24-bit color and provides consistent frame rate performance regardless of video
content
‧ Capture resolutions up to 1080p at 60 frames per second
‧ Interfaces with multiple third party applications compatible; with DirectShow on Windows,
Video4Linux on Linux, QuickTime on Mac OS X
‧ Sources power from USB port, no external power supply required
| MODEL NO. | HG-11B |
| DESCRIPTION | HDMI to USB 3.0 Video Grabber |
| INPUT INTERFACE |
1 x HDMI Type A HDMI 1.4b standard up to 1080p at 60 frames per second |
|
OUTPUT INTERFACE |
1 x USB Type A (USB 3.0,USB 2.0)
UVC video and audio
|
| VIDEO SAMPLING | 4:4:4 format |
| RESOLUTION | 480p, 720p, 1080p |
| OUTPUT COLOR SPACE | YUV2, RGB |
| HDMI AUDIO | 16-bit PCM encoded audio at 32KHz, 44.1KHz and 48KHz sampling rates |
| OS SUPPORT | Windows 7,8,10, Mac OS X (10.8 and above), Linux |
| ENVIRONMENT | Operating temperature 0~45℃ |
| DIMENSION | 41 x 72.2 x 11.1 mm (W x L x H) |
