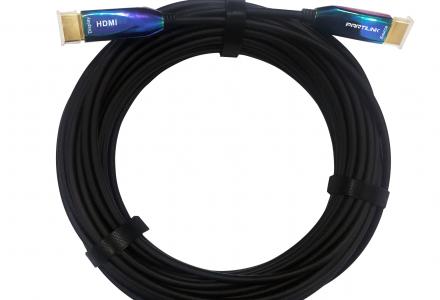

HDMI 4K60 Active Optical Cable
-
CAB-H01H01T1, CAB-H01H01T2, CAB-H01H01T3, CAB-H01H01T4
The Active Optical Cable is a HDMI 4K60 Active Optical Cable which enables optical technology for 15m, 30m, 50m, 100m distance cable. It colaborates with fiber booster, providing a reliable and flexible cable at a distance of up to 100m with no singal loss. Comprised of a fiber and copper wire mix, Partilink’s active cable supports resolutions up to 4K x 2K.

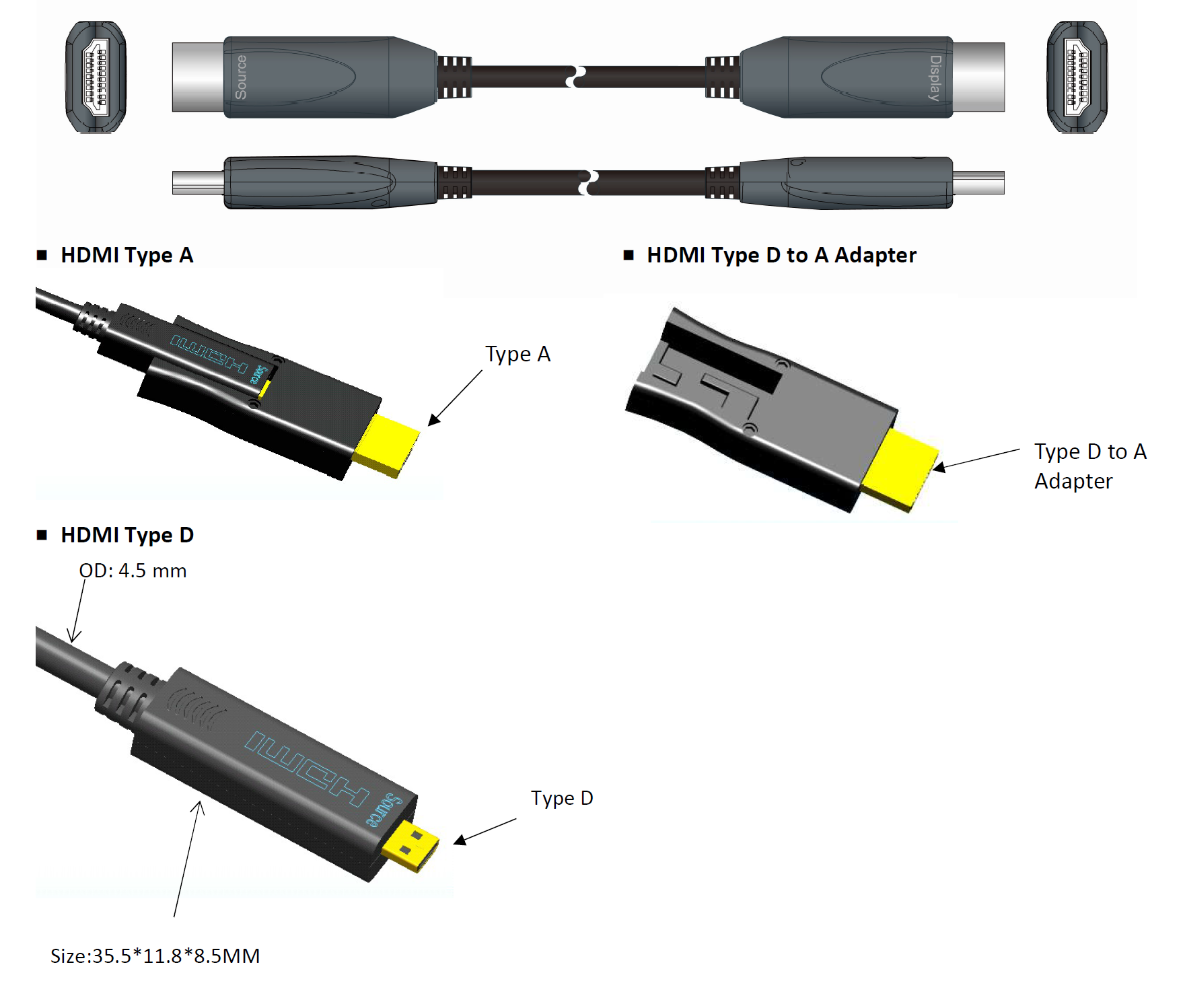

This cable features unidirectional design, which requires that Source/Display have to be installed in the correct direction. Please refer to the “Source” and “Display” labels on the HDMI connectors as below image. In order to ensure the device and the HDMI source are connected properly.
|
HDMI AOC Cable |
|||
|
Type |
Adapter |
Length |
Part number |
|
D to D |
D to A (Inbox accessory) |
15 |
CAB-HD1HD1T1 |
|
30 |
CAB-HD1HD1T2 |
||
|
50 |
CAB-HD1HD1T3 |
||
|
100 |
CAB-HD1HD1T4 |
||
|
A to A |
N/A |
15 |
CAB-H01H01T1 |
|
30 |
CAB-H01H01T2 |
||
|
50 |
CAB-H01H01T3 |
||
|
100 |
CAB-H01H01T4 |
||
Application
Apply to High-definition video and audio devices over long distance with no signal loss or EMI Interference
Extend connectivity up to 15m, 30m, 50m or 100m when source from PC, laptop, DVD player and connecting with HDMI display or projector
Features
High Speed transmission by optical system with 15m, 30n, 50m and 100m distance
Maintains highest HDMI single link video resolution 4K2K@60Hz 4:4:4
HDMI input supports video bandwidth up to 18Gbps
No extra power required
HDMI 2.0 compliant
HDCP 2.2 compliant
CEC/ ARC pass through
Support Stereo audio
Optical fibers immune to signal noise
Low RFI/EMI for sensitive application
Plug-n-Play
.png)
.png)
- Data Sheet:
