4x10 HDMI 2.0 Multiview Video Wall Processor
-
V33-H04H10

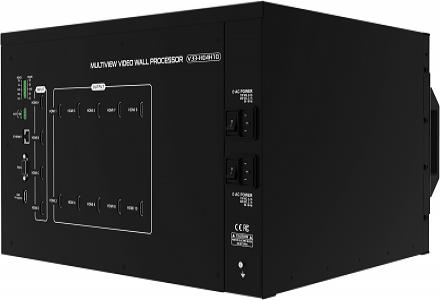

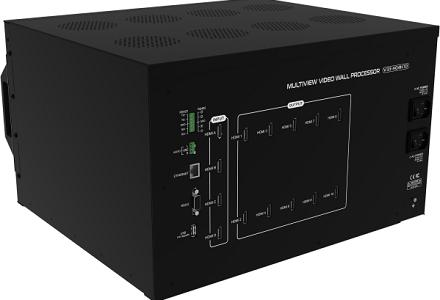

The Partilink V33-H04H10 HDMI 2.0 Multiview Video Wall Processor is an all-in-one 4-input and 10-output video wall system with multiview, scaling, customizing screen layouts, audio management. Its user friendly web UI, RS232, RS485, RS422 and telnet modular and robust design made the video wall control effectively.
The Partilink V33-H04H10 HDMI 2.0 Multiview Video Wall Processor is an all-in-one 4-input and 10-output video wall system with multiview, scaling, customizing screen layouts, audio management. Its user friendly web UI, RS232, RS485, RS422 and telnet modular and robust design made the video wall control effectively.
Features:
- Fast switching between input channels and combined multiple source images on video wall
- Handles HDMI® signals with Deep Color and HDCP 1.4/2.2 sources
- Input resolution up to 4K @60Hz, 4:4:4 color sampling
- Output resolution up to 4K @60Hz, 4:4:4 color sampling
- Upscaling up to 4K @60Hz, 4:4:4 color sampling and able to downscale as well
- PiP, PoP, quad-view and multiple customized screen layout configurations for video wall
- Rotation (R90°and L90°) in full screen layout
- Stereo audio output
- Control by web UI, RS232, RS485, RS422 and telnet
- Firmware upgrade via USB port
- Dual built-in power supply
- Display modes including video wall, multiview window
- Multiple windows displaying across multiple screen array without screen boundary.
- Able to build a 4K and even an 8K video wall system for supporting each output 4K@60Hz
- Able to build various video wall array system 1x10, 2x5, 3x3, 5x2, 10x1 by 10 output model

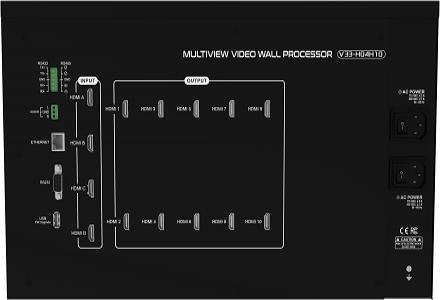

| MODEL NO. | V33-H04H10 | |
| INPUT/OUTPUT | Inputs | 4 x HDMI 2.0 |
| Output | 4 x HDMI 2.0 | |
| Audio Output | terminal block 3 pole, stereo | |
| IMAGE PROCESSING | Display Mode |
full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview, matrix |
| Input Resolution |
4096 x 2160p (60Hz, 50Hz, 24Hz) |
|
|
3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) |
||
|
2560 x 1080p (60Hz) |
||
|
1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) |
||
|
1920 x 1080i (60Hz, 50Hz) |
||
|
1280 x 720p (60Hz) |
||
|
720 x 480p (60Hz, 50Hz) |
||
|
720 x 576p (50Hz) |
||
|
640 x 480p (60Hz, 50Hz) |
||
| Input Color format | 04:04:04 | |
| Output Resolutions |
4096 x 2160p (60Hz ,50Hz, 24Hz) |
|
|
3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz) |
||
|
2048 x 2048p (57Hz) |
||
|
1920 x 1200p (60Hz) |
||
|
1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz) |
||
|
1600 x 1200p (60Hz) |
||
|
1280 x 720p (60Hz, 30Hz) |
||
| Output Color Format | 04:04:04 | |
| Output Color Depth | 24 bpp | |
| Scaler | scaling up to 4K @60Hz, | |
| 4:4:4 color sampling and downscaling as well | ||
| Video Bandwidth | up to 18 Gbps | |
| HDMI Compliance | HDMI 1.4 And HDMI 2.0 | |
| HDCP Compliance | HDCP 1.4 And HDCP 2.2 | |
| CONTROL METHODS | RS232 / Telnet | 1 x D9 female connector / |
| compatible with third party control system | ||
| RS485 / RS422 | 5-pole terminal block | |
| Ethernet Port | 1 x RJ45 / compatible with third party control system | |
| Web UI | browser / touch screen via smartphone or tablet | |
| FIRMWARE | Possible Upgrade | 1 x USB 2.0 |
| POWER | Power Supply | built-in power module 100-240 VAC / 50/60 Hz |
| Power Consumption | 90W | |
| ENVIROMENT | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 0% ~ 80% RH | |
| Storage Temperature | -20°C ~ 60°C | |
| PHYSICAL | Dimensions | 440 x 370 x 88 mm (L x W x H) |
| Weight | 3.7 KG | |
| Fixing Components | rear bracket, footpad and screws | |
- Connection Configuration:
-diagram-01.png)
- Display Mode:
