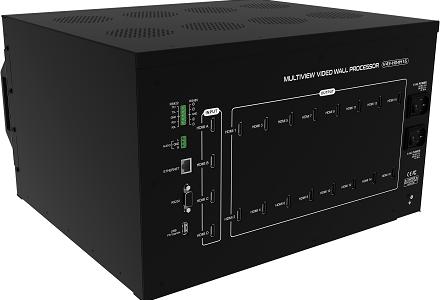

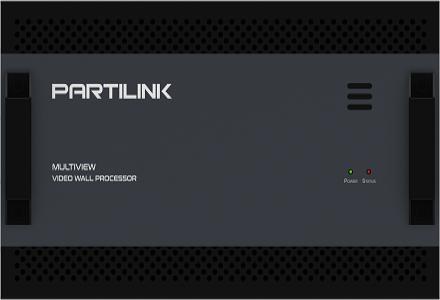

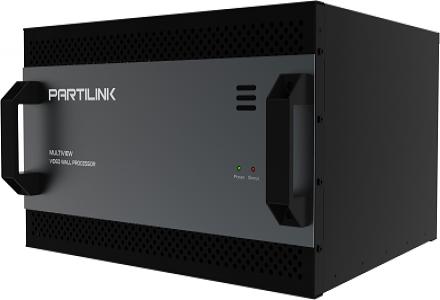

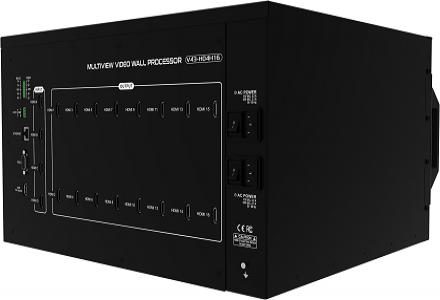

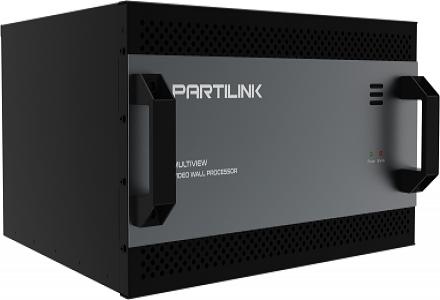

4x16 HDMI 2.0 Multiview Video Wall Processor
-
V43-H04H16
The Partilink V43-H04H16 HDMI 2.0 Multiview Video Wall Processor is an all-in-one 4-input and 16-output video wall system with multiview, scaling, customizing screen layouts, audio management. Its user friendly web UI, RS232, RS485, RS422 and telnet modular and robust design made the video wall control effectively.
The Partilink V43-H04H16 HDMI 2.0 Multiview Video Wall Processor is an all-in-one 4-input and 16-output video wall system with multiview, scaling, customizing screen layouts, audio management. Its user friendly web UI, RS232, RS485, RS422 and telnet modular and robust design made the video wall control effectively.
Features:
- Fast switching between input channels and combined multiple source images on video wall
- Handles HDMI® signals with Deep Color and HDCP 1.4/2.2 sources
- Input resolution up to 4K @60Hz, 4:4:4 color sampling
- Output resolution up to 4K @60Hz, 4:4:4 color sampling
- Upscaling up to 4K @60Hz, 4:4:4 color sampling and able to downscale as well
- PiP, PoP, quad-view and multiple customized screen layout configurations for video wall
- Rotation (R90°and L90°) in full screen layout
- Stereo audio output
- Control by web UI, RS232, RS485, RS422 and telnet
- Firmware upgrade via USB port
- Dual built-in power supply
- Display modes including video wall, multiview window
- Multiple windows displaying across multiple screen array without screen boundary.
- Able to build a 4K and even an 8K video wall system for supporting each output 4K@60Hz
- Able to build various video wall array system 2x8, 4x4, 8x2

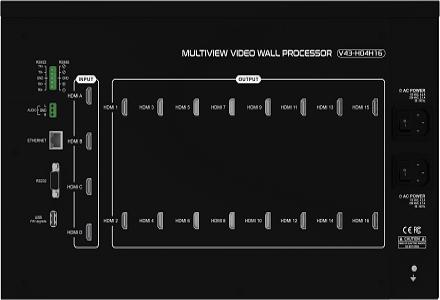

| MODEL NO. | V43-H04H16 | |
| INPUT/ OUTPUT | Inputs | 4 x HDMI 2.0 |
| Output | 16 x HDMI 2.0 | |
| Audio Output | terminal block 3 pole, stereo | |
| IMAGE PROCESSING | Display Mode |
full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview |
| Input Resolution |
4096 x 2160p (60Hz, 50Hz, 24Hz) |
|
|
3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) |
||
|
2560 x 1080p (60Hz) |
||
|
1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) |
||
|
1920 x 1080i (60Hz, 50Hz) |
||
|
1280 x 720p (60Hz) |
||
|
720 x 480p (60Hz, 50Hz) |
||
|
720 x 576p (50Hz) |
||
|
640 x 480p (60Hz, 50Hz) |
||
| Input Color format | 04:04:04 | |
| Output Resolutions |
4096 x 2160p (60Hz ,50Hz, 24Hz) |
|
|
3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz) |
||
|
2048 x 2048p (57Hz) |
||
|
1920 x 1200p (60Hz) |
||
|
1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz) |
||
|
1600 x 1200p (60Hz) |
||
|
1280 x 720p (60Hz, 30Hz) |
||
| Output Color Format | 04:04:04 | |
| Output Color Depth | 24 bpp | |
| Scaler | scaling up to 4K @60Hz, | |
| 4:4:4 color sampling and downscaling as well | ||
| Video Bandwidth | up to 18 Gbps | |
| HDMI Compliance | HDMI 1.4 And HDMI 2.0 | |
| HDCP Compliance | HDCP 1.4 And HDCP 2.2 | |
| CONTROL METHODS | RS232 / Telnet | 1 x D9 female connector / |
| compatible with third party control system | ||
| RS485 / RS422 | 5-pole terminal block | |
| Ethernet Port | 1 x RJ45 / compatible with third party control system | |
| Web UI | browser / touch screen via smartphone or tablet | |
| STABILITY | Safety | hardware structure, no risk of virus interference |
| Running Time | no auto-reboot during 365 days/year, 7days/7, 24h/24 | |
| FIRMWARE | Possible Upgrade | 1 x USB 2.0 |
| POWER | Power Supply | dual built-in power module 100-240 VAC / 50/60 Hz |
| Power Consumption | 205W | |
| Dual Power Supply | yes | |
| ENVIROMENT | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 90% RH | |
| Storage Temperature | -20°C ~ 60°C | |
| PHYSICAL | Dimensions | 440 x 264 x 421 mm (L x W x H) |
| Weight | 16.3 KG | |
| Fixing Components | handles, footpad and screws | |
- Connection Configuration:
-diagram-01.png)
- Display Mode:
