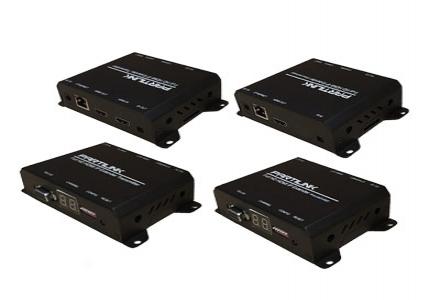

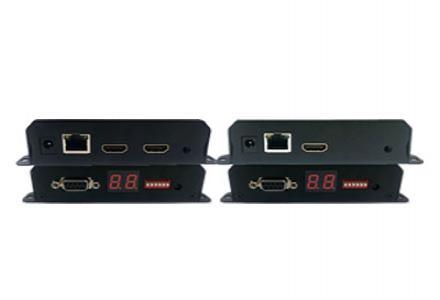

1080p HDMI Extender over IP with PoE
-
P2K-HL3E1-P (P2K-HRSL3E1P+ P2K-LHRS1E3P)HDMI over IP Extender for point to point, point to multi-point, multi- point to multi-point and screen wall broadcast including RS-232 and IR control extension.Easy installation with networking 10/100 BASE-T switch hub and CAT-5 cable for building up the extension or broadcast system.
HDMI over IP Extender for point to point, point to multi-point,multi- point to multi-point and screen wall broadcast including RS-232 and IR control extension.
Easy installation with networking 10/100 BASE-T switch hub and CAT-5 cable for building up the extension or broadcast system.
Features:
‧ RS-232 bi-directional extension
‧ 4 bits switch for 16 stream channel selection
‧ 2 bits switch for 8 RS-232 baud rate setting
‧ HDCP compliant and Blu-Ray ready
‧ Support IR extension
‧ Automatic EDID configuration
‧ Networking environment under 10/100 BASE-T switch hub and CAT5 cable
‧ Point to point extension, unicast, multicast and screen wall system
‧ Point to point extension via CATx without Ethernet switch up to 100M
|
P2K-HRSL3E1-P
1080p HDMI Extender
over IP with PoE
|

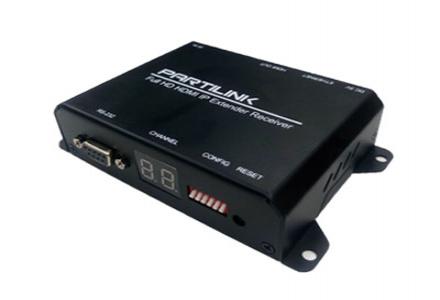

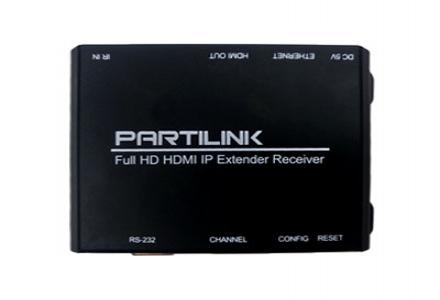

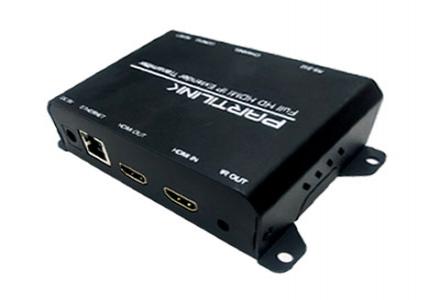

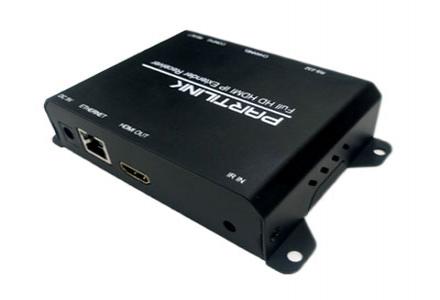

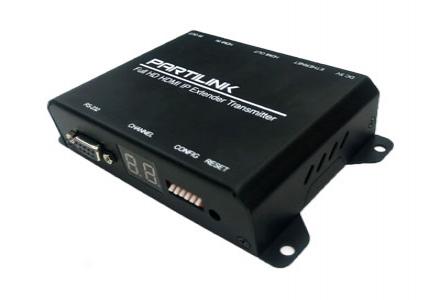

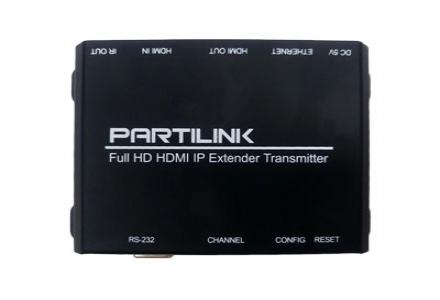

P2K-HRSL3E1-P Transmitter | P2K-LHRS1E3-P Receiver | ||
| VIDEO INPUT | HDMI Type-A female connector | None | ||
| VIDEO OUTPUT |
HDMI Type-A female connector for loop through |
HDMI Type-A female connector | ||
| IR |
3.5mm phone jack for IR emitter to control video source device
|
3.5mm phone jack for IR receiver cable to receive remote signal | ||
| COMPRESSION |
H.264 compression video format Full HD Encoder/ Decoder
MP3 compression audio format stereo 192Kbps Encoder/ Decoder
Media stream up to 18Mbps
|
|||
|
HDMI
INPUT RESOLUTION
|
1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,480i 60/50, 480p 60/50 | |||
|
HDMI
OUTPUT RESOLUTION
|
1080p 30/25, 1080i 60/50, 720p 60/50, 480i 60/50,480p 60/50 | |||
| AUDIO FORMAT | Stereo 192Kbps | |||
| IP PROTOCOL | TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 | |||
| LAN PORT | RJ45 connector for 10/100 BASE-T CAT5 extension | |||
| SERIAL | DB-9 male connector for RS-232 | |||
| POWER INPUT | 2.0mm power jack for DC5V/2A input | |||
| OPERATING TEMPERATURE | 0~55℃ | |||
| OPERATING HUMIDITY | 5%~90% RH | |||
| POWER SUPPLY | Power adapter AC in 100~240V (50~60Hz) | |||
| ESD | ESD protection air gap discharge ±8KV, contact discharged ±4KV | |||
| DIMENSION | 130 x 25 x 60 mm | |||
| WEIGHT | 200g | |||
.jpg)
■ Unicast
■ Multicast
■ Screen Wall
