Products/Dongle/USB-C to mDP Adapter

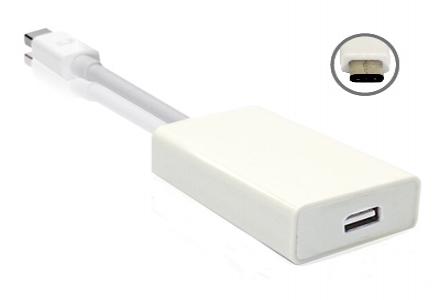

USB-C to mDP Adapter

P4K2-CD1C1F

P4K2-CD1C1F is a USB 3.1 type C to mDP converter, allows your Apple MacBook, Google Chromebook or Windows laptop equipped with USB-C port to connect and display on mDP display devices such as mDP-enabled TV, monitor, projector or any other compatible display up to UHD 4096 x 2160 @ 60Hz.

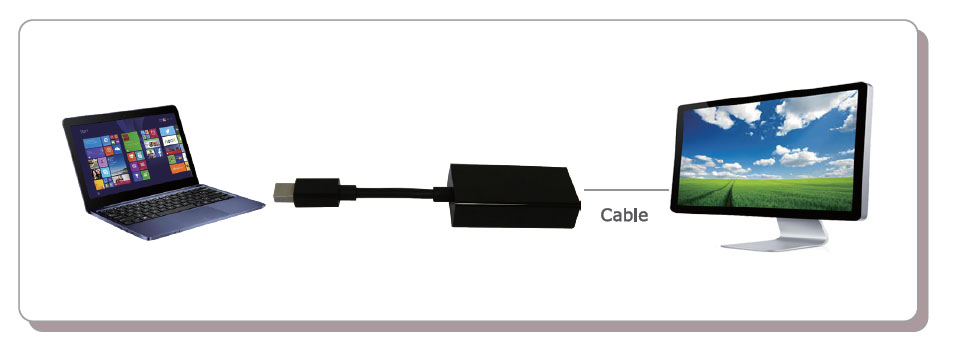

Just plug and play without software or drivers to get high resolution video extended or cloned. Connect the USB type C on the laptop to the TV or projector via a mDP cable.


P4K2-CD1C1F is a USB 3.1 type C to mDP converter, allows your Apple MacBook, Google Chromebook or Windows laptop equipped with USB-C port to connect and display on mDP display devices such as mDP-enabled TV, monitor, projector or any other compatible display up to UHD 4096 x 2160 @ 60Hz.

Just plug and play without software or drivers to get high resolution video extended or cloned. Connect the USB type C on the laptop to the TV or projector via a mDP cable.





Features:

‧ Convert USB Type C equipped laptop to work with mDP display

‧ Integrated chip to provide an active digital conversion from USB 3.1 type C port

‧ Compliant with mDP specification with UHD 4K (2160p) resolution and stereoscopic 3D

‧ Support HDCP 1.4

‧ USB Type C standard Rev.1.0 DisplayPort alternate mode

‧ Easy plug and play allows your laptop and tablet content seamless display

‧ Driver free under Apple MAC, Google Chromebook and Microsoft Windows operation system


  MODEL NO.   P4K2-CD1C1F
  DESCRIPTION   USB 3.1 Type-C to mDP Converter
  INPUT INTERFACE   USB Type-C Male
  USB Type-C DisplayPort alternate mode
  Resolution 3840x2160/4096x2160 @60Hz
  OUTPUT INTERFACE   mDP female, DP1.2
  POWER   USB Type-C bus power DC5V
  Power consumption 1.25W
  DISPLAY RESOLUTION   3840x2160/ 4096x2160 @60 Hz
  HDCP VERSION
  HDCP 1.4
  AUDIO   Digital audio output over DP
  DRIVER SUPPORT   Driver free under Apple MAC, Google Chromebook and Microsoft Windows
  ENVIRONMENT   Operating temperature 0~60℃
  Operating humidity < 85% non-condensing
  Storage temperature -10℃~ 85℃  (14℉~176℉)
  DIMENSION   32 x 14 x 179.7 mm  (W x D x L)



■ Data sheet

    P4K2-CD1C1F data sheet 160204
