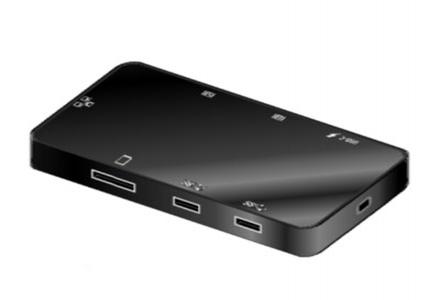

USB-C Docking Station
-
P2K-CHVLM1D5

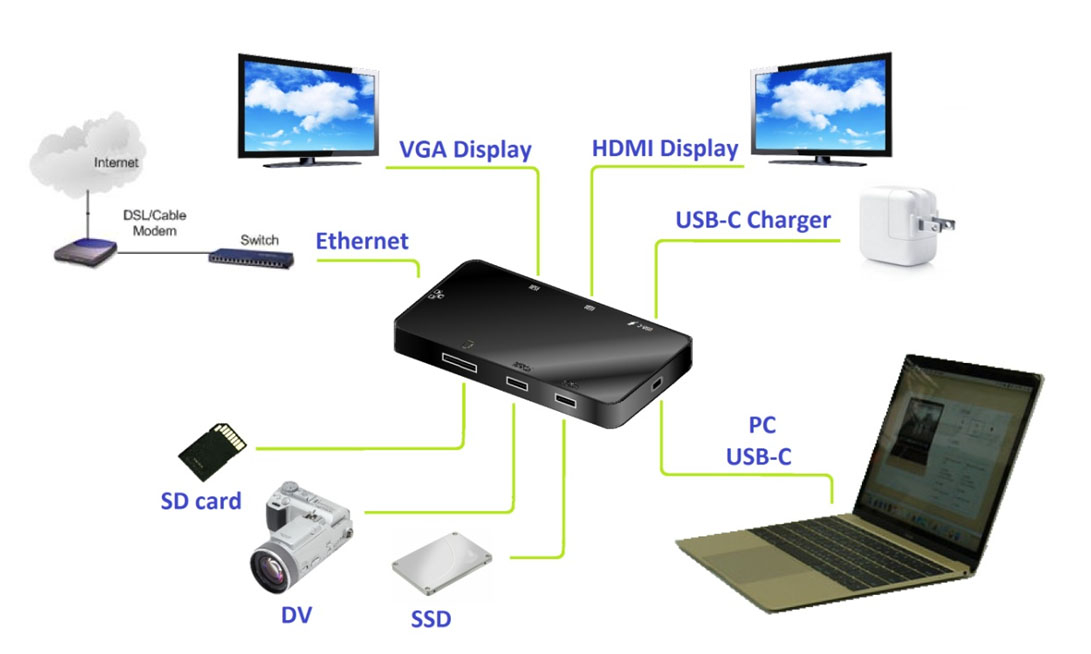

Partilink P2K-CHVLM1D5 USB-C Dock enables you to connect any Notebook with a USB-C port to your peripherals through a single USB-C cable, an especially handy ability for notebook users. Simply plug in your printer, keyboard, mouse, cable modem, external hard drive, headphones, speakers, microphone, and iPad, iPhone, or iPod, and other devices to the Partilink dock with their supplied cables, and connect your computer to the dock with a USB-C cable. When it's time to disconnect your computer, just unplug the USB-C cable! The Partilink Dock gives you plenty of interfaces to choose from, including USB 3.0, Gigabit Ethernet, VGA, HDMI, SD card reader, and USB-C charging.streamlined, sleek and compact design in the perfect solution for Gigabit Ethernet and USB port expansion.
Partilink P2K-CHVLM1D5 USB-C Dock enables you to connect any Notebook with a USB-C port to your peripherals through a single USB-C cable, an especially handy ability for notebook users. Simply plug in your printer, keyboard, mouse, cable modem, external hard drive, headphones, speakers, microphone, and iPad, iPhone, or iPod, and other devices to the Partilink dock with their supplied cables, and connect your computer to the dock with a USB-C cable. When it's time to disconnect your computer, just unplug the USB-C cable! The Partilink Dock gives you plenty of interfaces to choose from, including USB 3.0, Gigabit Ethernet, VGA, HDMI, SD card reader, and USB-C charging.streamlined, sleek and compact design in the perfect solution for Gigabit Ethernet and USB port expansion.
| MODEL NO. | P2K-CHVLM1D5 |
| DESCRIPTION | USB-C Docking Station |
| USER INTERFACE |
USB-C Input Port x1
- Host upstream link, USB-C female connector
HDMI Output Port x1
- HDMI 1.4 video 4k/30p output, HDMI Type-A female connector
VGA Output Port x1
- VGA 1920x1200, D-Sub15 female connector
USB 3.0 Output Port x2
- Hub downstream link, USB Type-A female connector
SD card reader x1
- UHS-I SD card slot
RJ-45 Portx 1:
- Complies with the Full-duplex Ethernet 10/100/1000M Gigabit with flow
control and Half-duplex with backpressure operation |
| POWER SUPPLY |
USB-C Bus-powered x1
USB-C female connector, charging power up to 40W
|
| DATA RATE |
USB3.0:
Low-speed / Full-speed / High-speed / Super- speed
|
| HOUSING |
Plastic
|
| WORKING ENVIRONMENT |
Operation Temperature 0~40°C Storage Temperature -20~70°C |
| COMPLIANCE | CE, FCC |
| DIMENSION | To Be Confirmed |
| WEIGHT | To Be Confirmed |
■ Data sheet
