4K HDMI 5x1 Switch
-
P4K-HH5W1

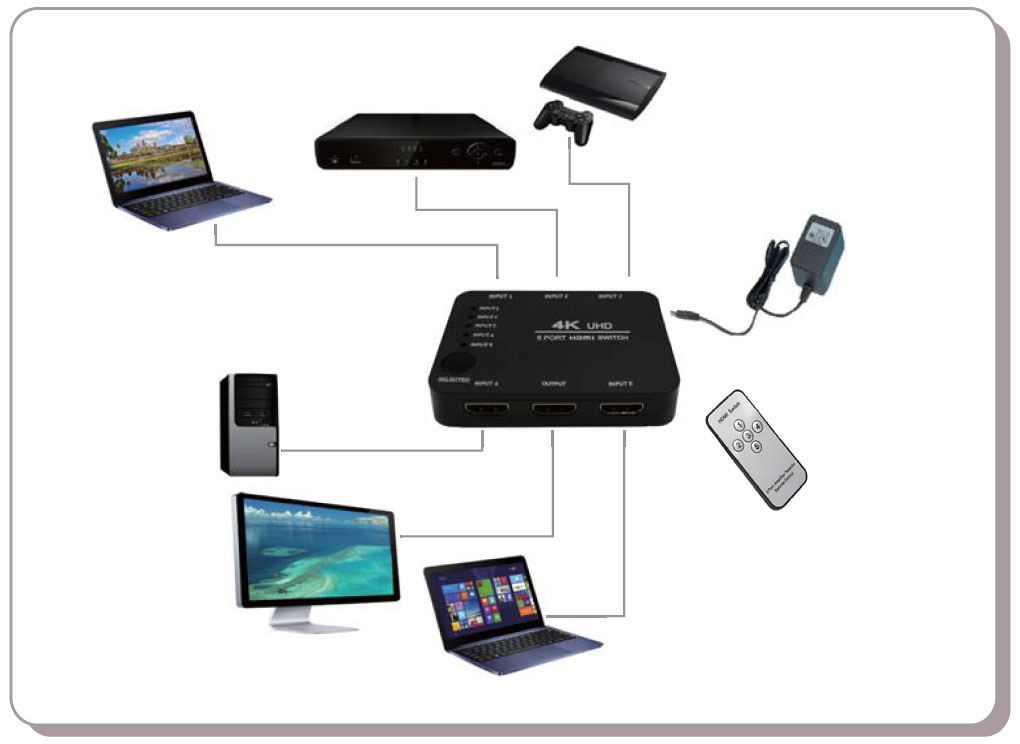

The Partilink 5-port HDMI 4K switch lets you share a display or projector with five HDMI-enabled audio / video source devices. The switch features five independent inputs that each supports 4K resolution and 7.1 surround sound audio.
The Partilink 5-port HDMI 4K switch lets you share a display or projector with five HDMI-enabled audio / video source devices.
The switch features five independent inputs that each supports 4K resolution and 7.1 surround sound audio.
Features:
‧ Support Ultra HD video resolution up to 4K @30Hz display
‧ Selp power when resolution up to 1080P
‧ Cascade up to 16 layers
‧ Support IR remote control
‧ Support long cable up to 5M
‧ Support 7.1 CH audio
| MODEL NO. | P4K-HH5W1 |
| DESCRIPTION | 4K HDMI 5x1 Switch |
| VIDEO INPUT | HDMI X 5 |
| VIDEO OUTPUT | HDMI X 1 |
| HDMI VERSION | HDMI 1.4 compliant |
| HDCP VERSION | HDCP 1.4 |
| RESOLUTION |
HDMI 4K x 2K @30p/ 1080p /1080i /720p /576p /576i /480p /480i
HDMI 1080p 3D @60p
|
| COLOR DEPTH | 24bit/30bit/36bit |
| AUDIO FORMAT | LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio |
| DATA RATE | Data transfer throughput 3.0Gbps |
| OPERATING TEMPERATURE | 0~55℃ |
| OPERATING HUMIDITY | 5%~90% RH |
| POWER SUPPLY | Power Jack Φ3.5x1.3mm, DC5V/1A input |
| IR | IR frequency 38KHz |
| ESD | ESD protection air gap discharge ±8KV, contact discharged ±4KV |
