4K HDMI 3x1 Switch

P4K-HH3W1

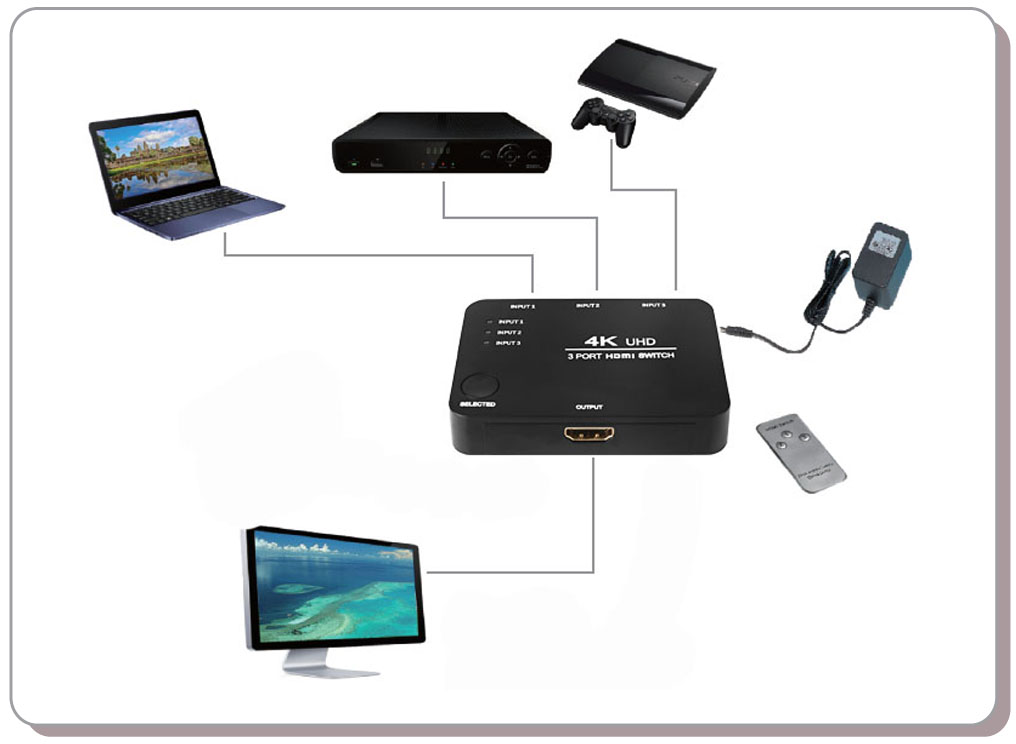

The Partilink 3-port HDMI 4K switch lets you share a display or projector with three HDMI-enabled audio / video source devices. The switch features three independent inputs that each supports 4K resolution and 7.1 surround sound audio.

The Partilink 3-port HDMI 4K switch lets you share a display or projector with three HDMI-enabled audio / video source devices. The switch features three independent inputs that each supports 4K resolution and 7.1 surround sound audio.





Features:



‧ Support Ultra HD video resolution up to 4K @30Hz display



‧ Selp power when resolution up to 1080P

‧ Cascade up to 16 layers

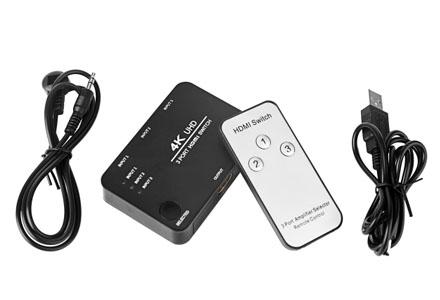

‧ Support IR remote control

‧ Support long cable up to 5M

‧ Support 7.1 CH audio

‧ EDID copy
  MODEL NO.   P4K-HH3W1
  DESCRIPTION   4K HDMI 3x1 Switch
  VIDEO INPUT   HDMI X 3
  VIDEO OUTPUT   HDMI X 1
  HDMI VERSION   HDMI 1.4 compliant
  HDCP VERSION   HDCP 1.4
  RESOLUTION   HDMI 4K x 2K @30p/1080p /1080i /720p /576p /576i /480p /480i
  HDMI 1080p 3D @60p
  COLOR DEPTH   24bit/30bit/36bit
  AUDIO FORMAT   LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio
  DATA RATE   Data transfer throughput 3.0Gbps
  OPERATING TEMPERATURE   0~55℃
  OPERATING HUMIDITY   5%~90% RH
  POWER SUPPLY   Power jack Φ3.5x1.3mm, DC5V/1A input
  IR   IR frequency 38KHz
  ESD   ESD protection air gap discharge ±8KV, contact discharged ±4KV



■ Data sheet

    P4K-HH3W1 data sheet 151102



■ User Manual

    User Manual-UM-P4K-HH3W1-150917
