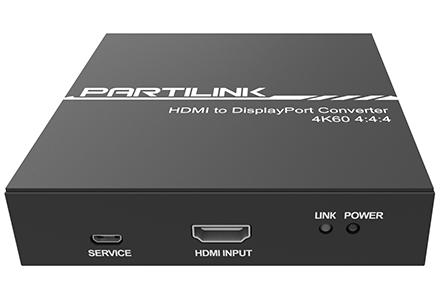

HDMI 2.0 to DisplayPort 1.2a Converter
-
P4K2-H1D2
P4K2-H1D2 is an HDMI 2.0 to DisplayPort 1.2a converter/ splitter which provides 1 HDMI input and 2 DisplayPort outputs. H4K2-HD supports resolution up to 4Kx2K@60 4:4:4 color sampling.
P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a convertor/ splitter which provides 1 HDMI input and 2 DisplayPort outputs. H4K2-HD supports resolution up to 4Kx2K@60 4:4:4 color sampling.
Features:
‧ DisplayPort 1.2a & HDMI 2.0 compliant
‧ HDMI input supports video bandwidth up to 18Gbps
‧ Support HDCP 1.4 / 2.2
‧ HDMI input supports video bandwidth up to 18Gbps
‧ Support HDCP 1.4 / 2.2
‧ DisplayPort output supports link rate RBR/HBR/HBR2
‧ Resolution up to 4Kx2K@60 4:4:4 8bits
‧ Stereo audio
‧ Firmware upgrade via USB port
| MODEL NO. | P4K2-H1D2 |
| DESCRIPTION | HDMI 2.0 to DisplayPort 1.2a Converter |

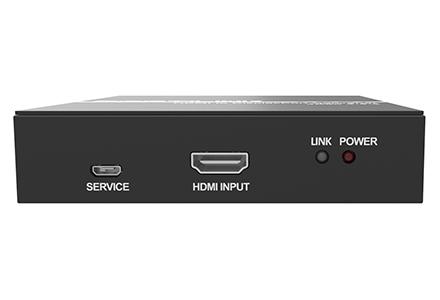

| INPUT INTERFACE |
1 x HDMI Type A female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |

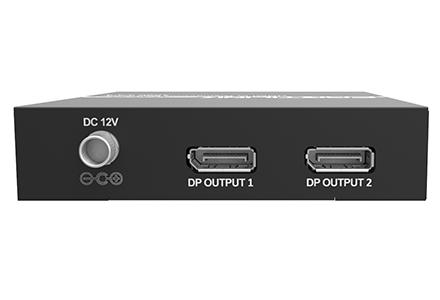

| OUTPUT INTERFACE |
2 x DisplayPort female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
| AUDIO | Stereo, 32k~192kHz sampling rate |
| POWER |
DC 12V/2A, locking barrel connector
|
| ENVIRONMENT |
Operating temperature 0~45℃ Operating humidity 20~90% Storage temperature -20~60℃ |
| DIMENSION | 108 x 114 x 24.6 mm (W x L x H) |
| WEIGHT | 356 g |
