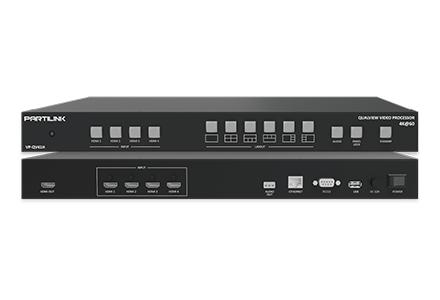

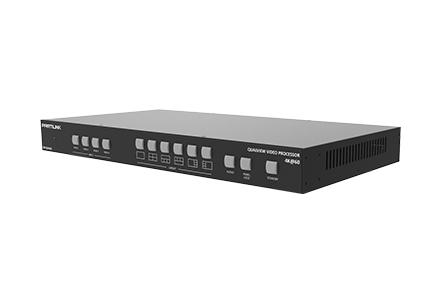

HDMI 2.0 Quadview Video Processor
-
VP-QV41H
The Partilink VP-QV41H Quadview Video Processor is a simple, cost-effective video scaler
designed to enable a 4K@60Hz, HD, SD computer display device, virtually handling any input

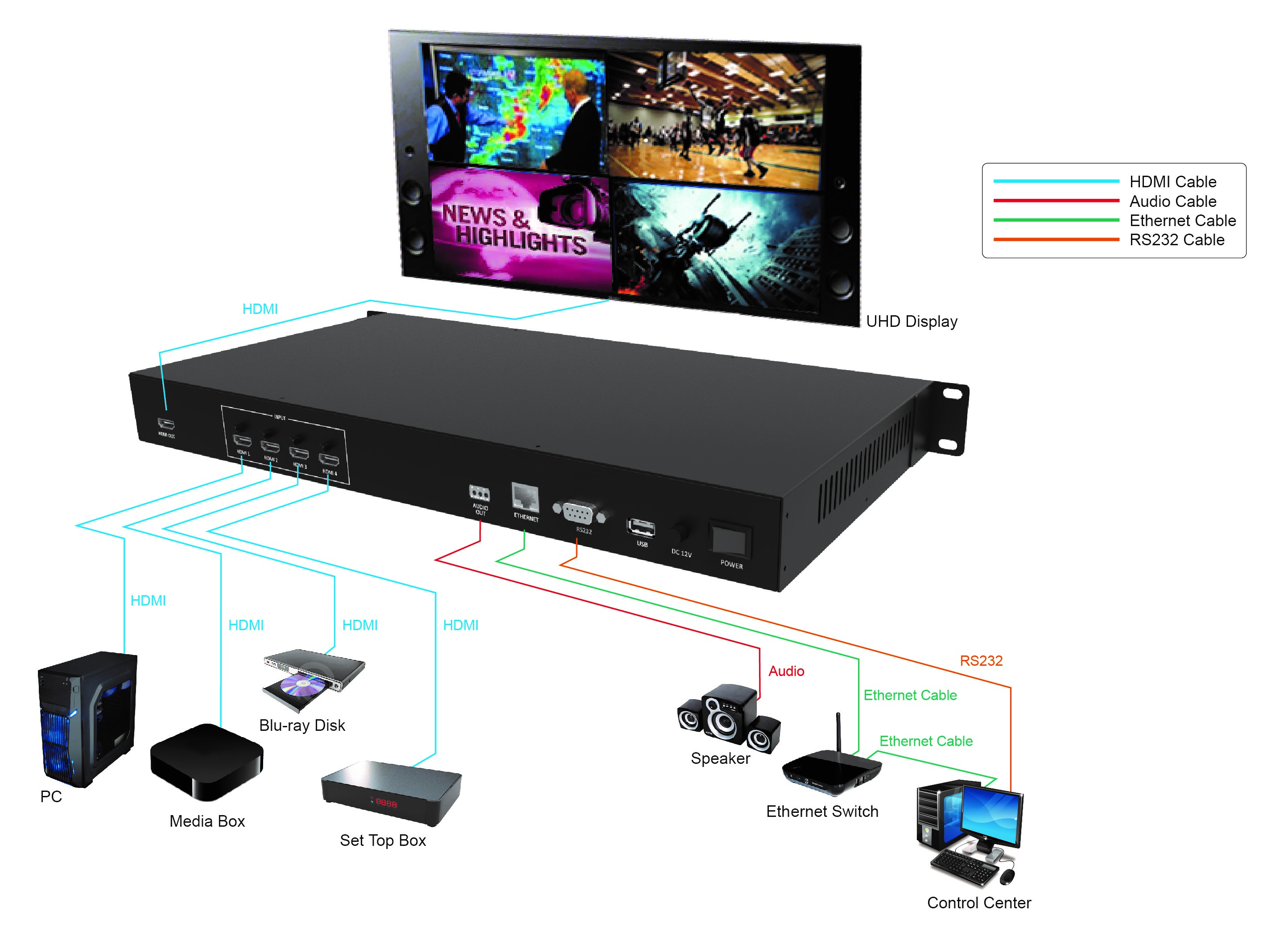

resolution up to 4K@60Hz. It provides 4 HDMI inputs, 1 analog audio output, and 1 HDMI
output.
Fast switching technology integrated into the Partilink Quadview Video Processor improves the
user experience considerably. Users will notice a much faster response time in the HDMI receiver
as they switch among the multiple HDMI inputs that are connected to the video source.
Fully automatic operation by duplicating the EDID of display, simply connect the VP-QV41 with
Data Sheet
incoming video signal and it intelligently converts and enhances that signal for the optimal
appearance on your display.
Manage IP-Based digital signage and video wall content remotely with Quadview Video
Processor’s Web UI. Users can customize screen layout by preference. It supports maximum 8
sets screen layout saved on Web UI and 6 sets preset screen layout.
The Quadview Video Processor handles standard and high-definition digital video sources with
resolutions up to 4K@60Hz. Regardless of the type of source device, this video processor is
capable of scaling it up or down, reducing noise artifacts, and adjusting its aspect ratio to
match the native resolution of your video display or computer monitor. The Quadview Video
Processor supports a wide selection of display resolutions up to 4096×2160, with auto-calibration
that ensures a quick and easy setup and hands-off operation.
Audio Technology
Via the HDMI input, VP-QV41H receives 5.1 audio formats like Dolby Digital® and DTS®, aswell as uncompressed 7.1 linear PCM. And output audio R/L on HDMI. In addition to HDMI, itincludes an analog audio input to accommodate the stereo signal from an analog audio source. Theanalog input signal is combined with the HDMI video input signal and routed to the scaler’sHDMI output simultaneously.
Introduction
The Partilink VP-QV41H Quadview Video Processor is a simple, cost-effective video scaler
designed to enable a 4K@60Hz, HD, SD computer display device, virtually handling any input
resolution up to 4K@60Hz. It provides 4 HDMI inputs, 1 analog audio output, and 1 HDMI
output. Fast switching technology integrated into the Partilink Quadview Video Processor improves the
user experience considerably. Users will notice a much faster response time in the HDMI receiver
as they switch among the multiple HDMI inputs that are connected to the video source.
Fully automatic operation by duplicating the EDID of display, simply connect the VP-QV41 with
Data Sheet incoming video signal and it intelligently converts and enhances that signal for the optimal
appearance on your display. Manage IP-Based digital signage and video wall content remotely with Quadview Video
Processor’s Web UI. Users can customize screen layout by preference. It supports maximum 8
sets screen layout saved on Web UI and 6 sets preset screen layout. The Quadview Video Processor handles standard and high-definition digital video sources with resolutions up to 4K@60Hz. Regardless of the type of source device, this video processor is
capable of scaling it up or down, reducing noise artifacts, and adjusting its aspect ratio to
match the native resolution of your video display or computer monitor. The Quadview Video
Processor supports a wide selection of display resolutions up to 4096×2160, with auto-calibration
that ensures a quick and easy setup and hands-off operation.
- Hospitality in lobby, hospital,
- Conference room presentation
- Advertising in shopping mall, supermarket, restaurants
- Broadcast in airport, bus or train station, classroom
- Rental and staging
- Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
- Integration with DVR, IP camera as a surveillance system in bank and stock market
Features

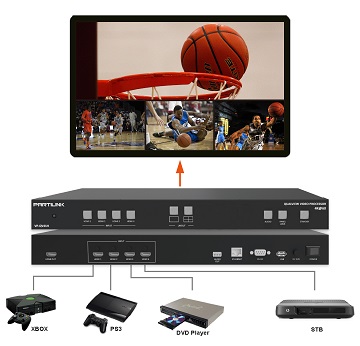

- Fast switching among input channels and combine multiple images on a single monitor
- Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2
- Supports input resolution up to 4K@60Hz, 4:4:4 color sampling
- Supports output resolution up to 4K@60Hz, 4:4:4 color sampling
- Supports scaling up to 4K@60Hz, 4:4:4 color sampling

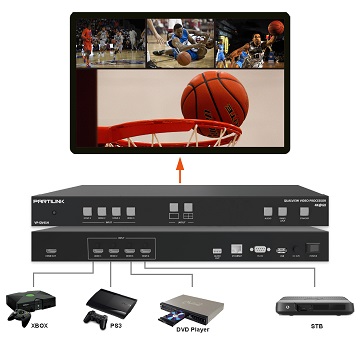

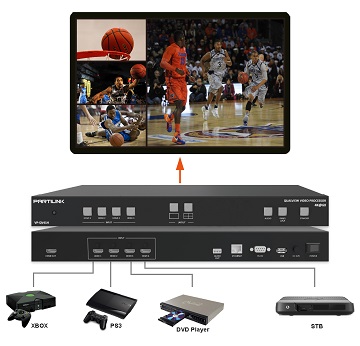

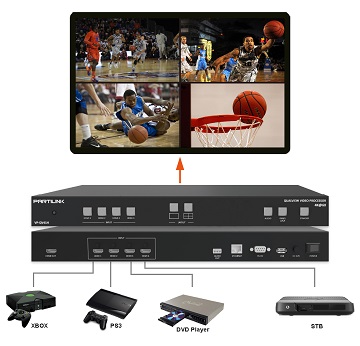

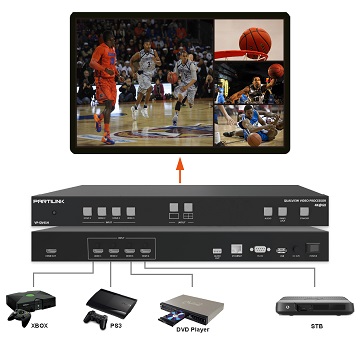

- Supports PIP, POP and multi-view layout configurations

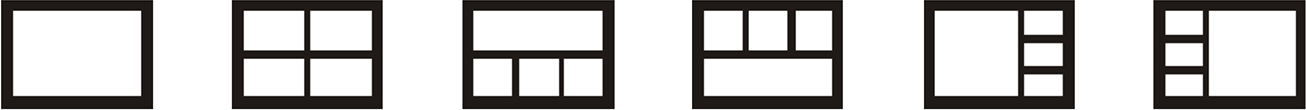

- Supports 14 different screen layouts - 6 preset screen layouts and 8 customized screen layouts
- Rotation (R90。and L90。) when input resolution up to 1080p or flip output in a full-screen layout
- Receives Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio includes stereo analog audio input
- Supports stereo audio output

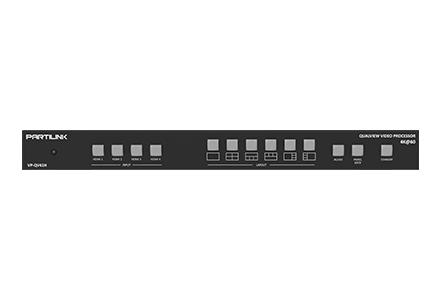

- Supports front panel button, IR remote control, RS232 and Web UI
- Supports firmware upgrade
|

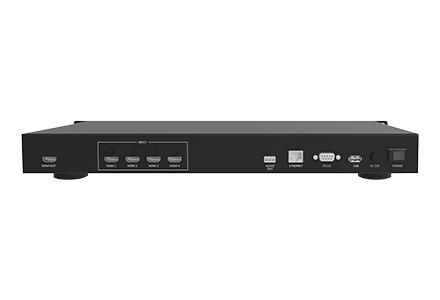

MODEL NO. |
VP-QV41H |
|
INPUT |
HDMI 2.0 with locking x 4 |
|
OUTPUT |
HDMI 2.0 with locking x 1 |
|
Audio R/L |
|
|
CONTROL |
Front panel buttons |
|
IR remote control |
|
|
RS232 |
|
|
Web UI |
|
|
FIRMWARE UPGRADE |
USB 2.0 x 1 |
|
VIDEO OUTPUT RESOLUTION |
4096 x 2160@60Hz, 4:4:4 color sampling |
|
ETHERNET PORT |
RJ45 x 1 |
|
LED INDICATOR |
INPUT, blue backlight LAYOUT, blue backlight INPUT SWAP, blue backlight LOCK, blue backlight STANDBY on, red backlight STANDBY off, green backlight |
|
POWER SUPPLY |
DC 12V/2A, locking barrel connector |
|
POWER CONSUMPTION |
15W |
|
ENVIRONMENT |
Operating temperature 0 ℃~ 45℃ |
|
Operating humidity 20~90% RH |
|
|
Storage temperature -20 ℃ ~60 ℃ |
|
|
DIMENSION |
440.4 x 230 x 45 mm (L x W x H, standard 1U) |
|
WEIGHT |
2.72 KG |
