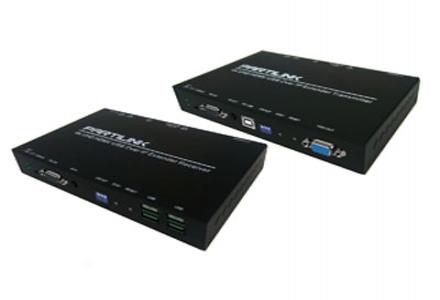

4K HDMl ＆ USB Extender over lP: P4K-HUL4E1　　　　　　　　　　 (P4K-HRSUL4E1/ P4K+LHRSU1E4)

4K UHD HDMI / USB over IP Extender for point to point, point to multi-point, multi- point to multi-point and screen wall broadcast including USB/RS-232 and IR control extension.

Easy installation with networking Giga Ethernet switch and CAT-5e cable for building up the extension or broadcast system.

產品概要
產品規格

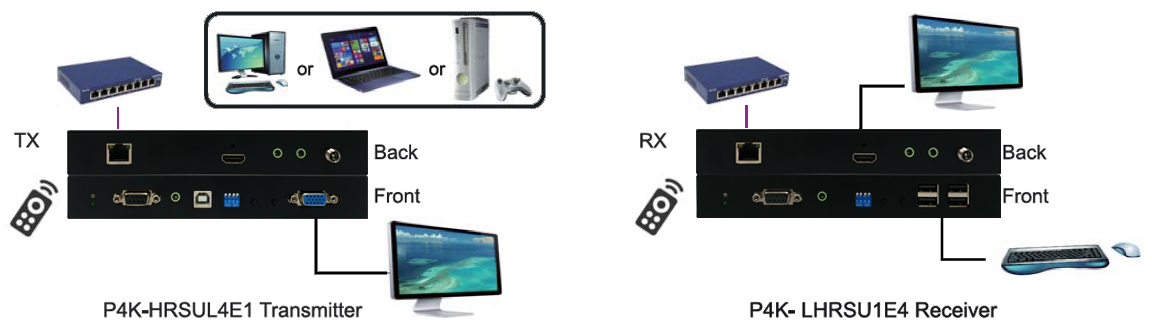

連接應用圖
資料下載

4K UHD HDMI / USB over IP Extender for point to point, point to multi-point, multi- point to multi-point and screen wall broadcast including USB/RS-232 and IR control extension.

Easy installation with networking Giga Ethernet switch and CAT-5e cable for building up the extension or broadcast system.

Features:

‧ 4K UHD HDMI over IP extension

‧ USB 2.0 over IP extension

‧ RS-232 bi-directional extension

‧ 4 bits switch for 16 stream channel selection

‧ HDCP 1.4 compliant and Blu-Ray ready

‧ Support two way IR extension

‧ Output video rotation

‧ Output video partial enlargement

‧ VGA in to HDMI out / HDMI in to VGA out Hybrid broadcasting

‧ Automatic EDID configuration

‧ Networking environment under Giga Ethernet switch and CAT5e cable

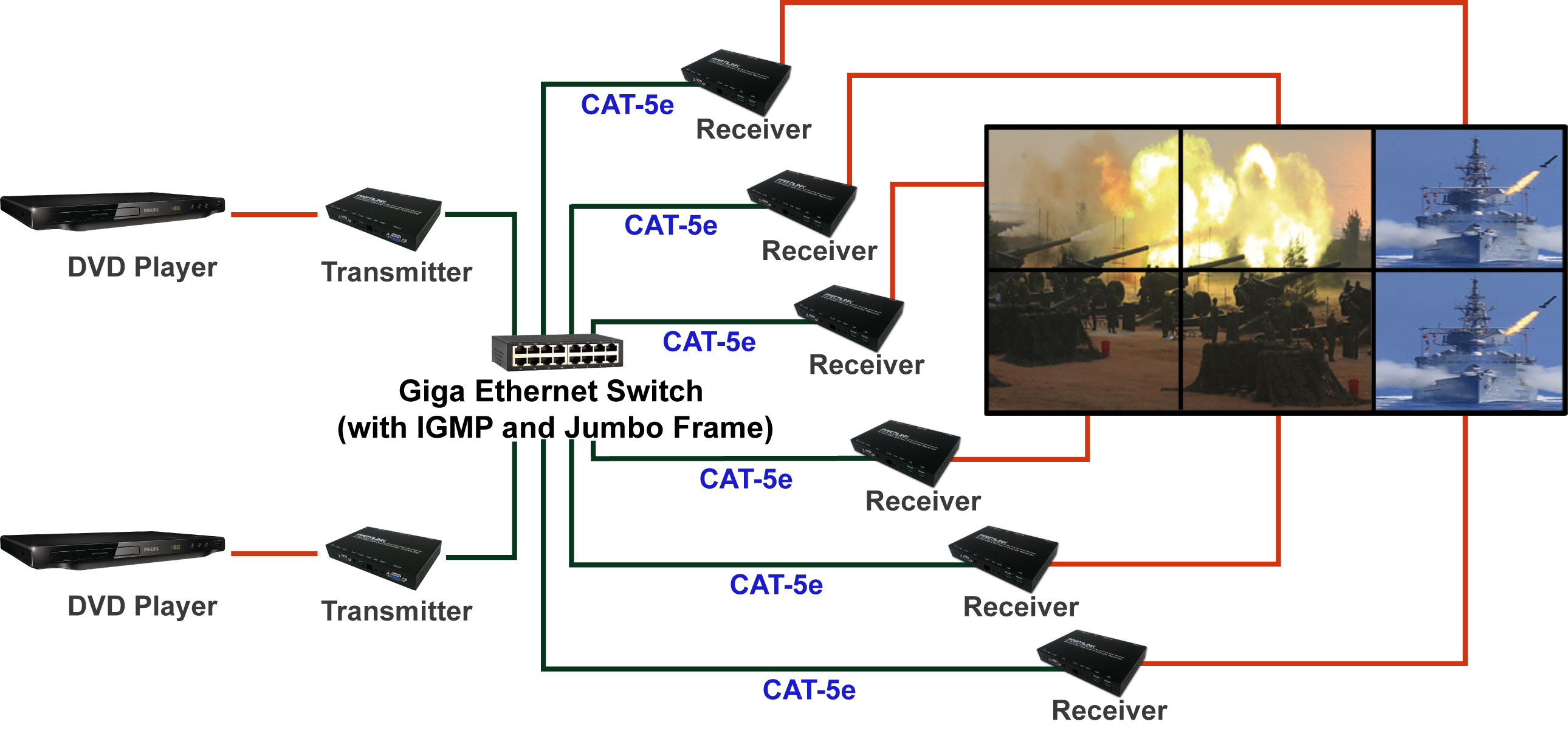

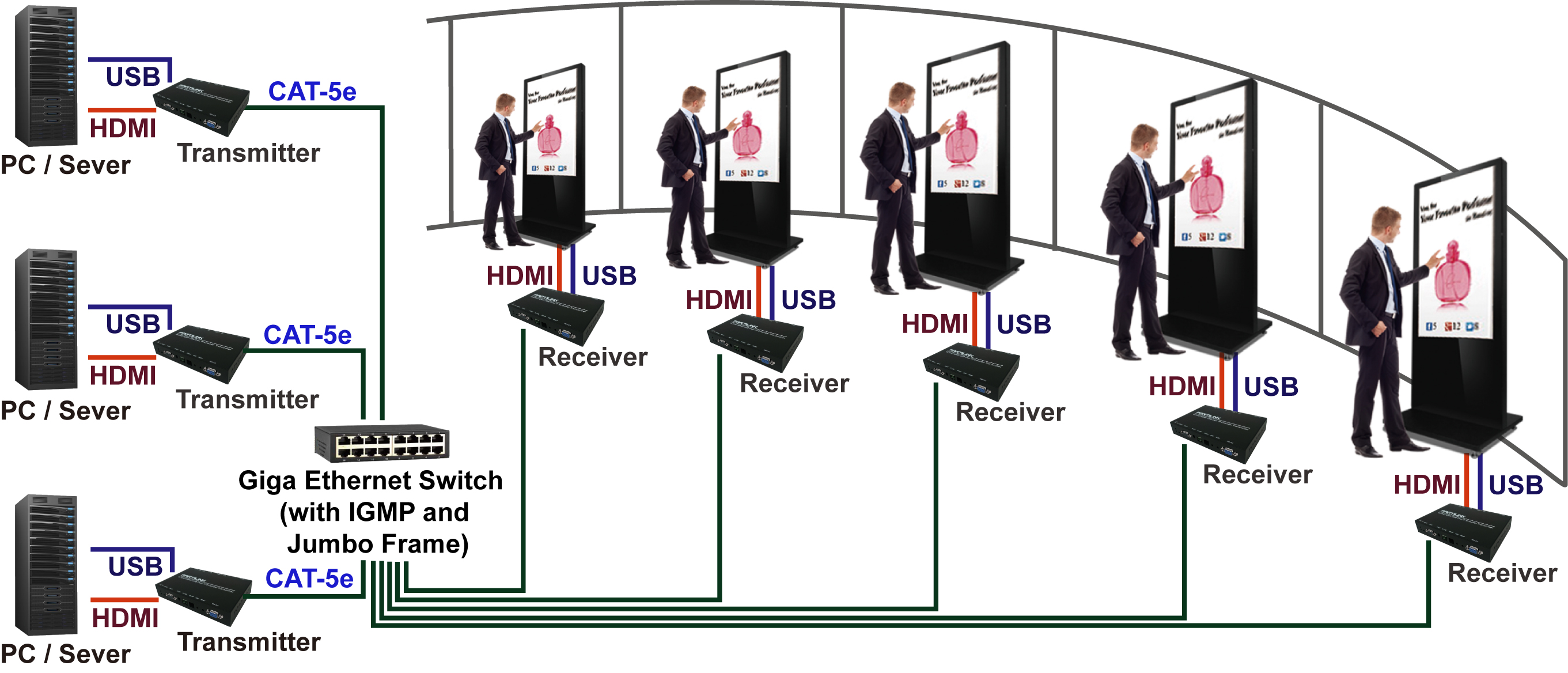

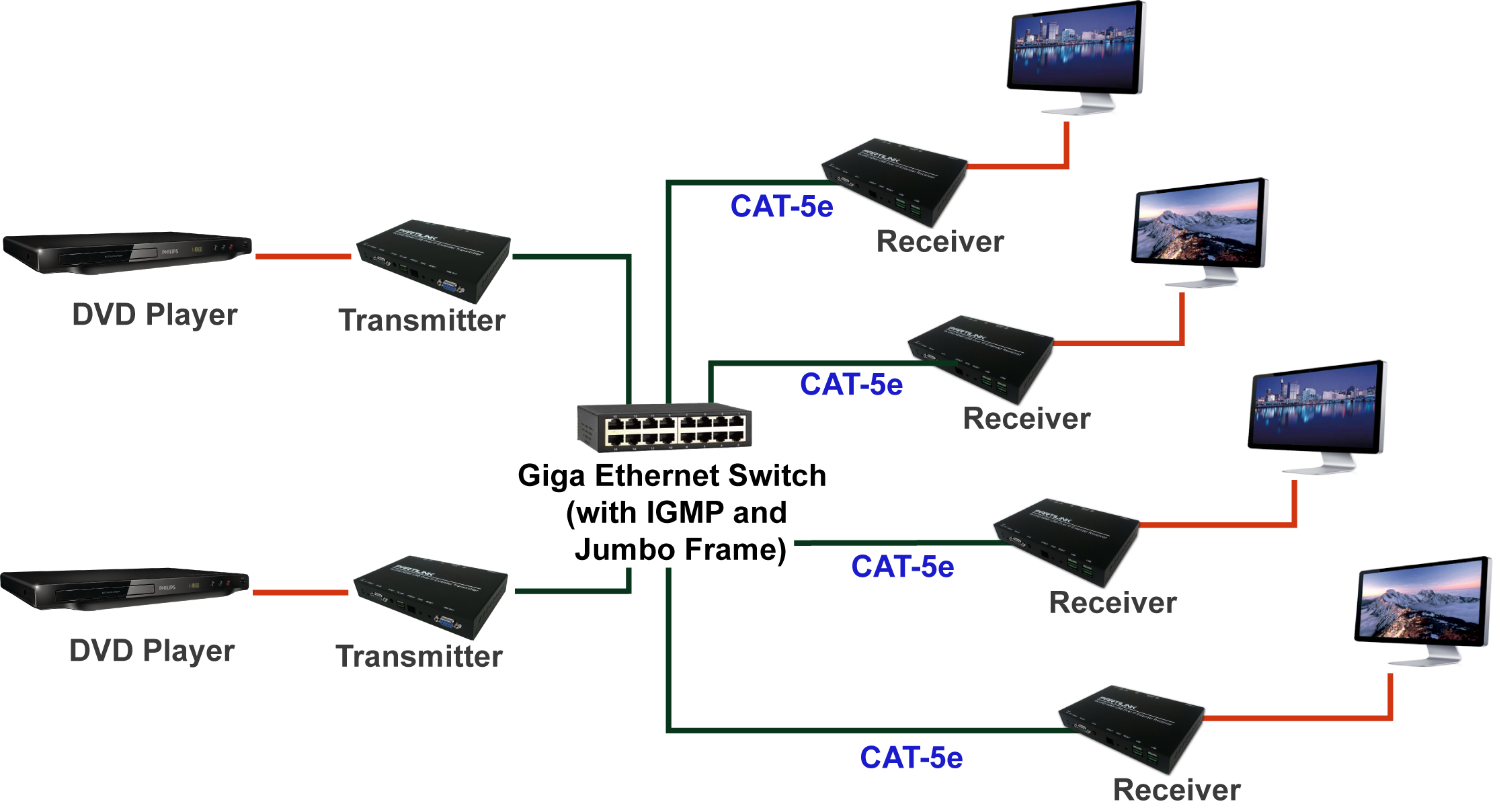

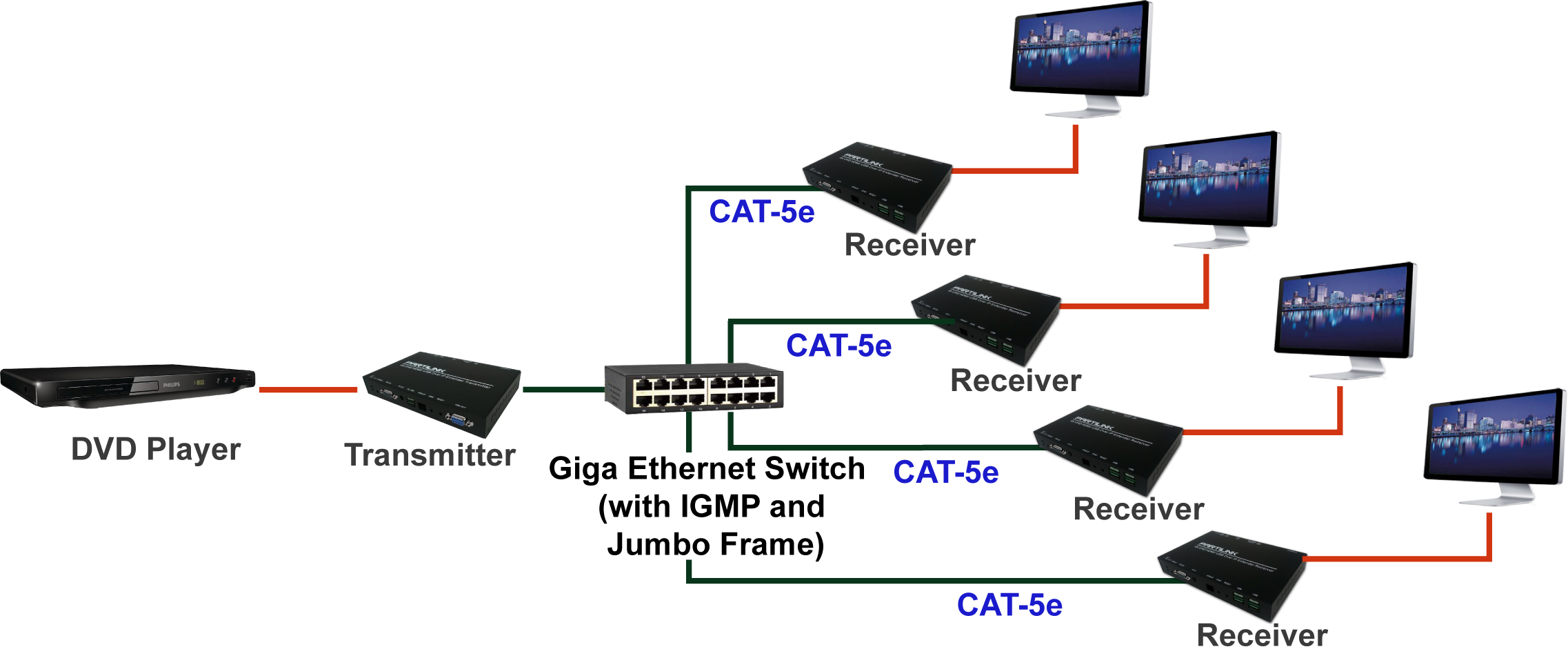

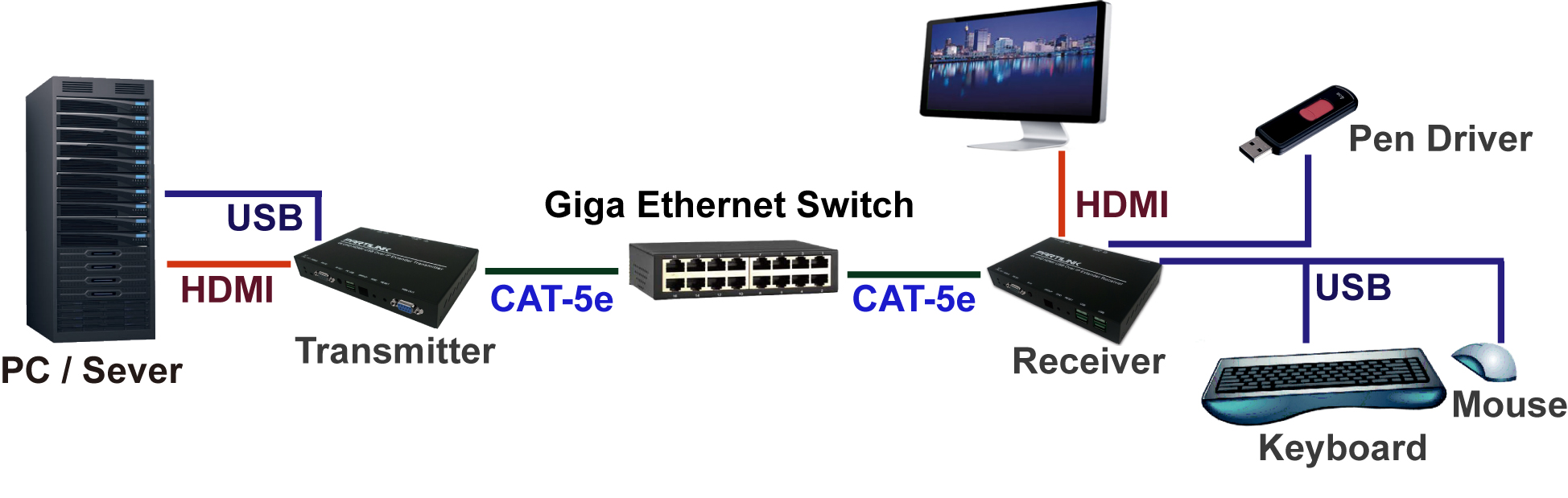

‧ Point to point extension, unicast, multicast and screen wall system

‧ Point to point extension via CAT5e cable without Ethernet switch up to 100M

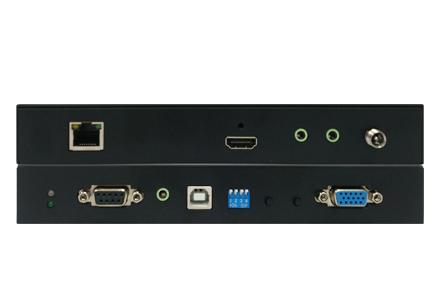

P4K-HUL4E1 4K UHD HDMI over IP Extender	P4K-HRSUL4E1 Transmitter	P4K-LHRSU1E4 Receiver
VIDEO INPUT	HDMI Type-A female connector	None
VIDEO OUTPUT	HDMI Type-A female connector for loop through VGA DB-15 female local output	HDMI Type-A female connector
IR	2x 3.5mm phone jack for IR emitter and receiver to control video source device
COMPRESSION	Visual lossless compression
HDMI INPUT RESOLUTION	3840x2160 30/24, 1080p 60/50, 1080p 30/25, 1080i 60/50 720p 60/50, 480i 60/50, 480p 60/50
HDMI OUTPUT RESOLUTION	3840x2160 30/24, 1080p 30/25, 1080i 60/50,720p 60/50 480i 60/50, 480p 60/50
VGA OUTPUT RESOLUTION	1080p 30/25, 1080i 60/50, 720p 60/50 480i 60/50, 480p 60/50
AUDIO FORMAT	Stereo 192Kbps
IP PROTOCOL	TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
LAN PORT	RJ45 connector for Giga Ethernet
SERIAL	DB-9 male connector for RS-232 extension
MANAGEMENT	LAN port	SERIAL Port
	Embedded webpage management	RS-232 Debug, control command
POWER INPUT	2.0mm power jack for DC12V/2A input
OPERATING TEMPERATURE	0~55℃
OPERATING HUMIDITY	5%~90% RH
POWER SUPPLY	Power adapter AC in 100~240V (50~60Hz)
ESD	ESD protection air gap discharge ±8KV, contact discharged ±4KV
LAN PORT	RJ45 connector for 10/100 BASE-T CAT5 extension
SERIAL	DB-9 male connector for RS-232
POWER INPUT	2.0mm power jack for DC5V/2A input
OPERATING TEMPERATURE	0~55℃
OPERATING HUMIDITY	5%~90% RH
POWER SUPPLY	Power adapter AC in 100~240V (50~60Hz)
ESD	ESD protection air gap discharge ±8KV, contact discharged ±4KV
DIMENSION	175 x 25 x 150 mm
WEIGHT	240g
